Lifting Table Cart Manufacturers

Zhejiang Vermillion Import and Export Co., Ltd. is a Lifting Table Cart manufacturer based in Jiaxing, Zhejiang, China, producing hydraulic scissor lifting carts for auto repair workshops, engine rebuild shops, warehouse logistics and factory maintenance teams. Our range covers 150 kg, 300 kg, 500 kg, 750 kg and 800 kg rated capacities, with single-stage and two-stage scissor lift options and platforms from a compact 708 × 450 mm up to an extended 905 × 500 mm. Each cart lifts on a foot-operated hydraulic pedal, lowers through a hand release valve, and rolls on four swivel castors with brakes on two of them.

• Capacities: 150 kg / 300 kg / 500 kg / 750 kg / 800 kg
• Lift structure: single-stage and two-stage scissor arms
• Actuation: foot pedal, no electrical supply required
• Platform: non-slip surface, compact to extra-large sizes
• Mobility: four swivel castors, two with locking brakes
• Customization: OEM/ODM branding, packaging and parameter adaptation

Our Lifting Table Cart Range

The range is built around load capacity and platform area rather than a single universal size. The 500 kg hydraulic table cart is our bestseller, and the same hydraulic architecture scales up to the 800 kg model for heavier industrial work.

Application Fit Across Workshop and Production Environments

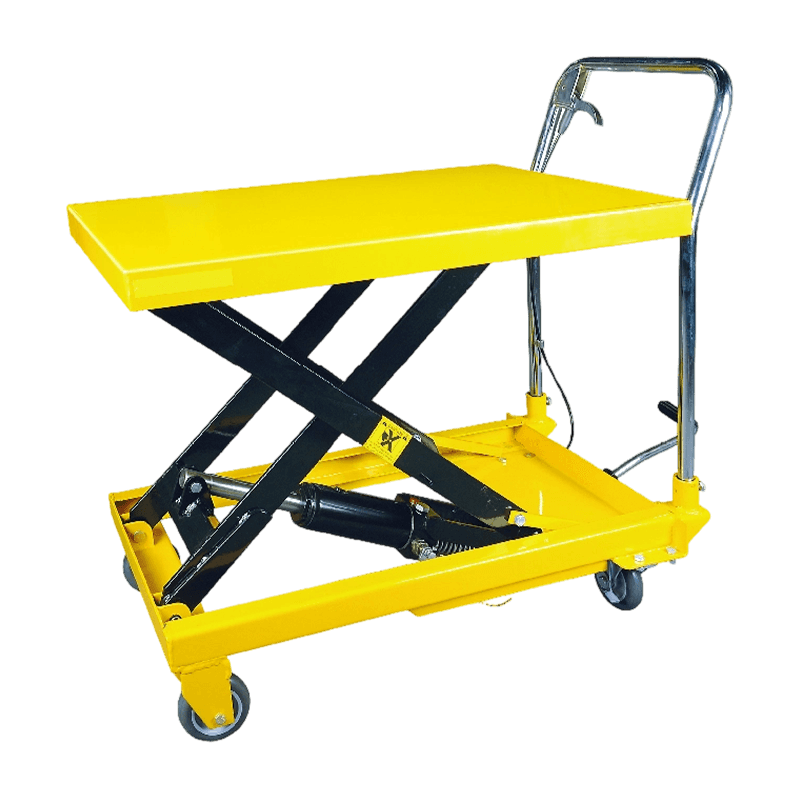

• Auto repair and engine rebuild shops: the OYP300A and OYP500 raise engine blocks, gearboxes and sub-frames to bench height, and their 240–260 mm collapsed height lets them slide under vehicle underbodies and machinery bases before lifting.

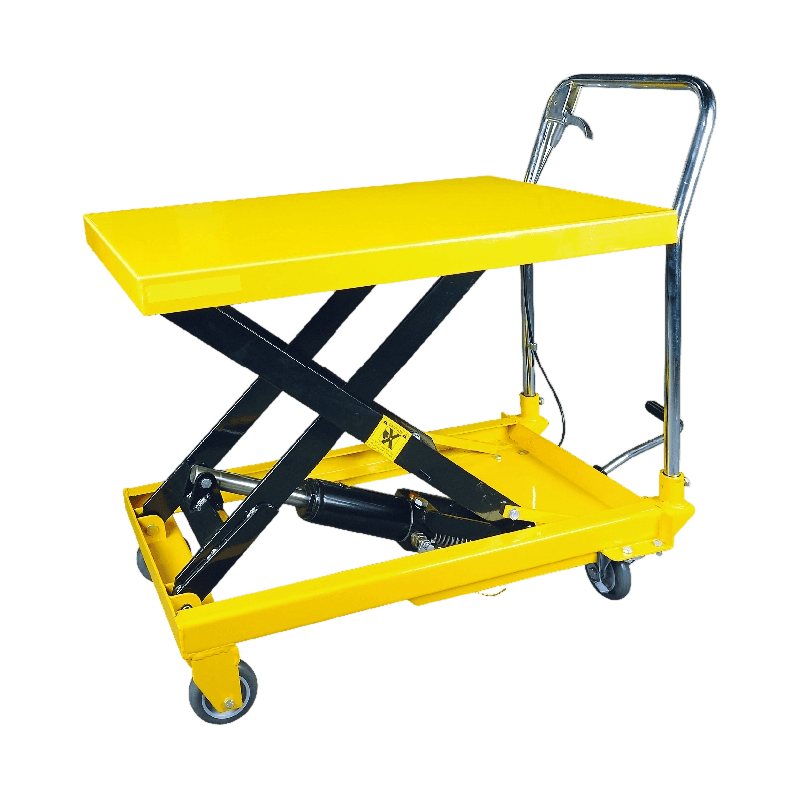

• Warehouse and logistics: the OYP150 and OYP300A move tooling and boxed parts through narrow aisles, with braked castors holding the cart steady while a load is transferred.

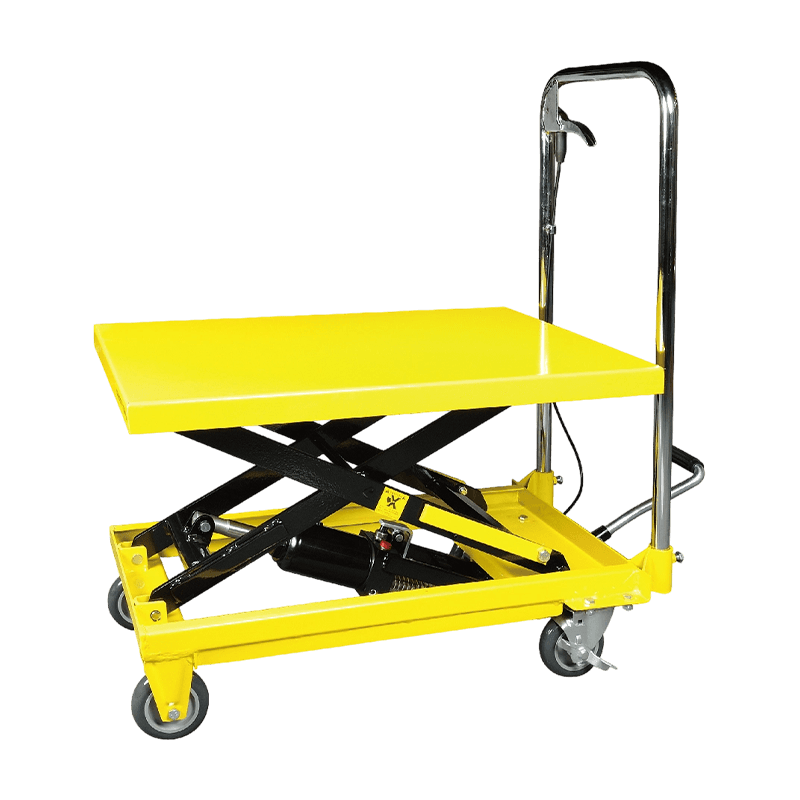

• Machine shops and production maintenance: the OYP750 and OYP800B cover repeated heavy lifts where a 300 kg cart is not sufficient.

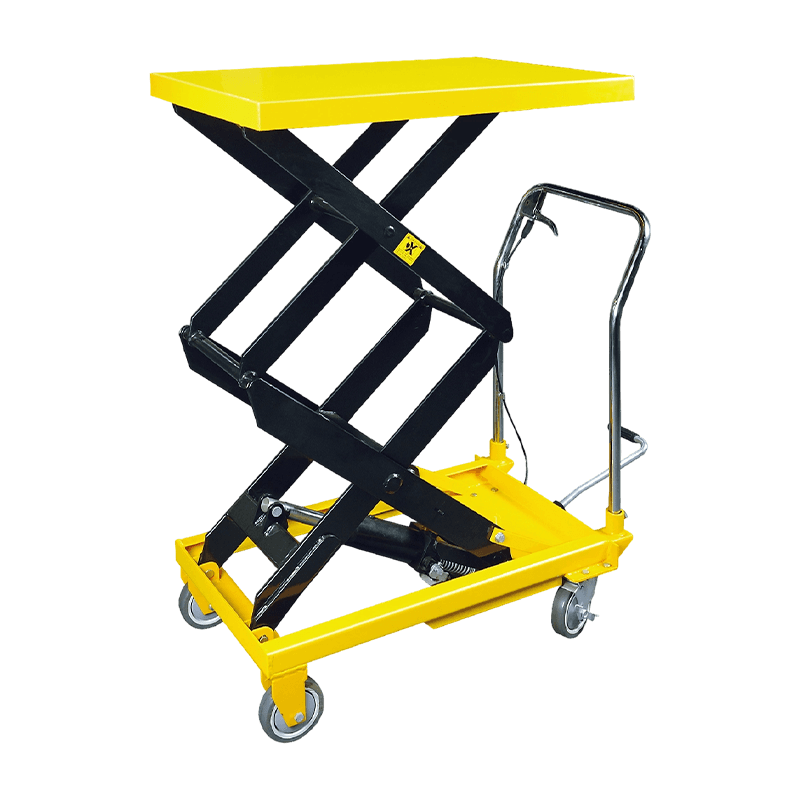

• Wide and long loads: the OYP300B and OYP500B platforms support fixtures, elongated components and palletised parts that overhang a standard table.
• Complementary handling: our Shop Crane range covers overhead lifting and positioning of engines and heavy assemblies, Engine Stand units hold engines at working height during rebuild, and Wheel Dolly sets move wheels and tyres between bays.

Platform, Scissor and Hydraulic Construction

The frame and platform are steel fabrications, with the scissor arms welded and dimensioned to carry the rated load with a stable margin. On the higher-capacity models the scissor geometry is reinforced so the arms resist the side-loading forces that appear when a load is not perfectly centred on the platform.

Hydraulic force comes from a pedal-actuated pump feeding a single ram, with a hand-operated release valve for gradual, controlled descent. The platform surface carries a non-slip pattern that keeps workpieces and automotive components stable during lifting and positioning.

Critical Specifications at the Working Point

• Rated capacity against real load: the working load includes the component, any fixture or pallet, and the operator's handling margin.
• Platform area against load footprint: an overhanging load shifts the centre of gravity and loads the scissor arms unevenly.
• Collapsed height: 225 mm on the OYP150, 240 mm on the OYP300A and 260 mm on the OYP500, which determines whether the cart can be slid under the load.
• Maximum lift height: 700 mm to 780 mm on the published models, matched to bench, conveyor or underbody working height.
• Load centring: keeping the mass over the platform centre protects the scissor pivot points and the ram seal.
• Floor and castor condition: swivel castors roll freely on concrete and tile; expansion joints, swarf and cable runs raise rolling resistance.
• Lift frequency per shift: repeated cycles under rated load define the service interval for the hydraulic unit and castors.

Published Platform and Packing Data

Controls, Handling and Operator Safety

Foot-pedal actuation keeps both hands free to steady the load while the platform rises in small increments, and no electrical supply or compressed air line is needed at the point of use. Lowering is metered through the hand release valve, so the platform descends gradually instead of dropping.

• Two braked castors lock the cart in position before a load is placed or worked on.
• The low collapsed profile lets the platform be positioned under the load rather than lifting it onto the cart.
• Single-operator use is practical on the compact and standard models; heavier models suit two-person loading.
• Non-slip platform surfacing limits load creep during transport.

Configuration and OEM/ODM Options

Zhejiang Vermillion supplies standard models and builds customized versions for wholesalers, distributors and brand sellers. Our R&D team adjusts pressure, dimensions, appearance and operating structure to suit the standards and working habits of different regions, including Europe, North America and Southeast Asia.

• Branding: laser marking of the customer logo on the product.
• Packaging: customized colour box, carton and user manual in English, Japanese, Spanish, French and other languages.
• Structure and parameters: platform size, lift height, appearance and operation layout adapted to the target market.
• Exclusive development: prototype design, sample production, mass production and testing for customer-specific models.
• Order flexibility: low minimum order quantity for market trials, with bulk terms for full-container orders.

Quality Control and Acceptance

Our factory operates under an ISO9001 quality management system, and core hydraulic products carry CE certification for European market sales. Inspection runs through the production flow rather than only at final assembly, supported by automated assembly lines and a testing laboratory on site.

On this product family, the points that decide whether a cart leaves the line are hydraulic sealing under rated load, smooth lift and controlled descent through the release valve, scissor and weld condition, castor and brake function, and platform surface condition. Packing is checked against the carton and container loading plan before shipment.

Information We Use to Configure Your Solution

• Load weight, load type and whether a fixture or pallet is included
• Load footprint and the longest dimension that must sit on the platform
• Required working height and the clearance the cart must pass under
• Floor surface, aisle width and turning space at the point of use
• Lifts per shift and whether one or two operators handle the load
• Target market standard, documentation language and branding requirements
• Order quantity, trial-order plan and container loading target

Documentation, Packaging and Spare Parts

Carts ship in cartons sized to the model, with container loading quantities published per 20 ft container so distributors can plan mixed orders. Multi-language manuals and operation video tutorials accompany the shipment, and we supply low-cost spare parts over the life of the product to keep after-sales maintenance predictable.

Frequently Asked Questions

Which lifting table cart capacity should I start from?

Start from the total load, not the component alone. If the load is a bare engine block or gearbox, the 300 kg and 500 kg models cover most service-bay work; if fixtures, pallets or repeated heavy lifts are involved, the 750 kg and 800 kg models give the necessary margin. The 500 kg hydraulic table cart is our bestseller because it covers a wide band of automotive and industrial loads.

Do the carts need power or compressed air?

No. Lift is generated by a foot-operated hydraulic pedal and lowering is controlled by a hand release valve, so the cart works anywhere with a stable floor surface.

What is the difference between the A and B platform versions?

The A models use a standard platform with a single scissor set. The B models use a wider or extended platform, and the OYP300B uses a double-scissor arm structure, which suits wide, long or palletised loads that need a larger support area.

Can you produce carts with our brand and packaging?

Yes. We provide OEM and ODM services covering laser-marked logos, customized colour boxes and cartons, multi-language manuals, and structural or parameter changes for a specific market. Exclusive new models can be developed from prototype through sample production and testing.

What certifications apply to the lifting table cart range?

Our factory holds ISO9001 quality system certification, and core hydraulic products carry CE certification for European market sales. Certification documents are provided with the order documentation for the models concerned.

How are spare parts and after-sales support handled?

We supply long-term after-sales technical guidance, operation video tutorials and low-cost spare parts for the service life of the cart, so distributors can support end users without holding large local stock.
