Air Hose Reel Manufacturers

Zhejiang Vermillion Import and Export Co., Ltd. manufactures retractable air hose reels within a wider programme of hydraulic machinery, garage equipment and motorcycle maintenance tools. We supply distributors, workshop chains and OEM brand owners who need a fixed compressed-air delivery point that keeps hose off the floor, away from passing vehicles and sharp edges, and returns it to a tidy coil after every job.

Five models make up the current range, covering 15 m to 25 m of working hose. Every unit shares the same 3/8 in bore, the same 1/4 in outlet fitting and the same 250 PSI / 1.7 MPa rating, so a workshop fitted with several reels keeps one coupler standard and one spare-hose specification across the whole floor.

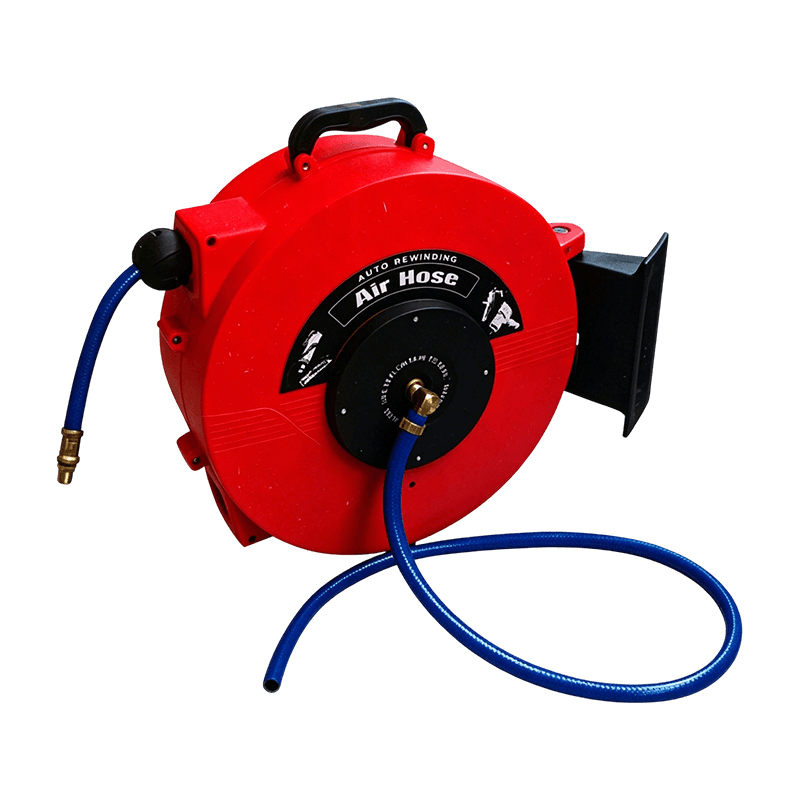

• OY6602 — standard open-frame 15 m / 50 ft reel for general service bays and tyre fitting

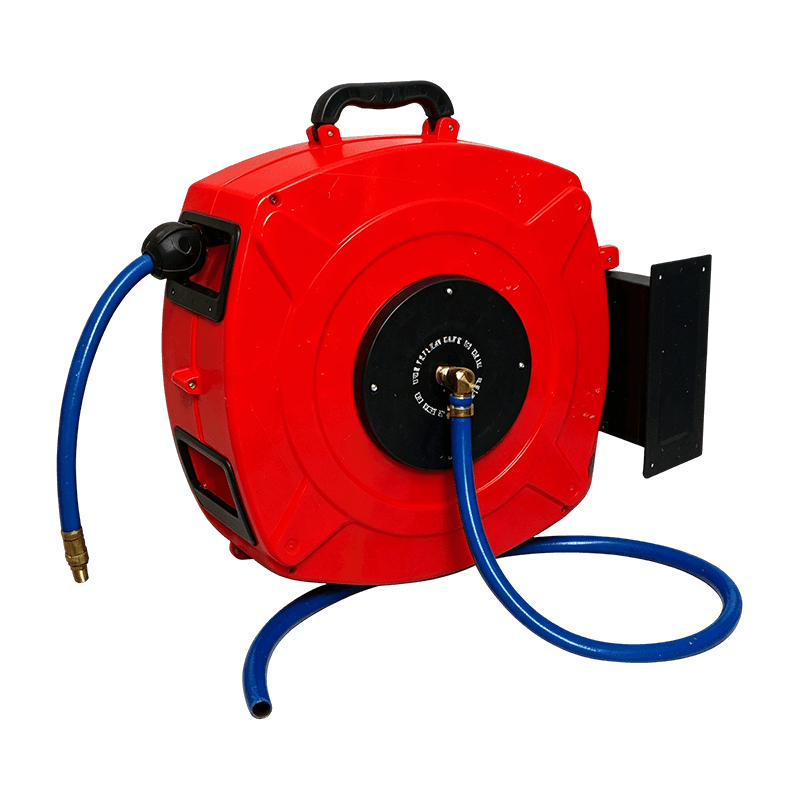

• OY6603 — enclosed-housing 15 m / 50 ft reel for dusty, spatter-prone and impact-exposed areas

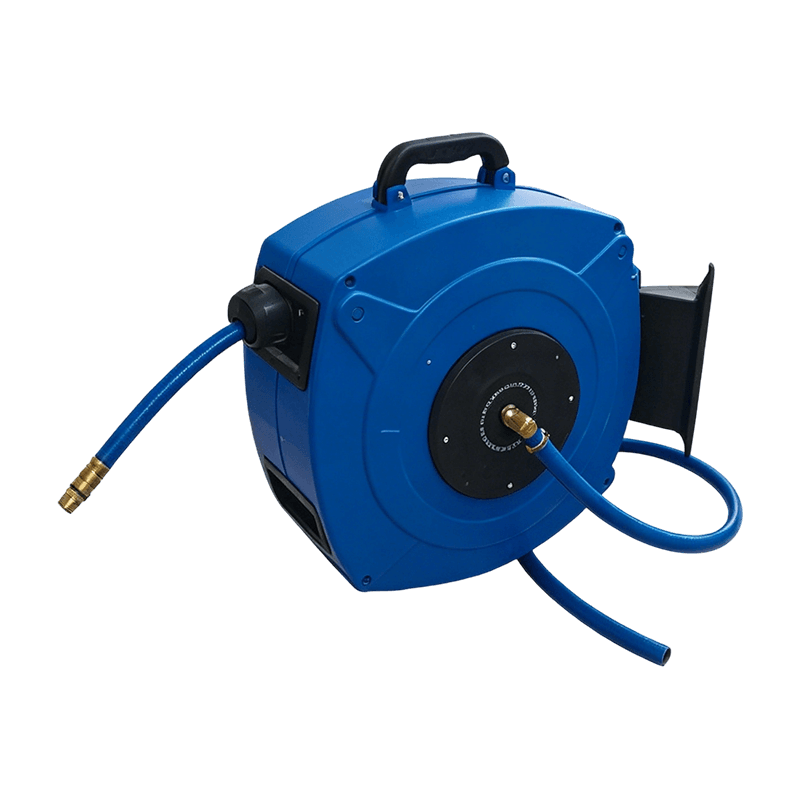

• OY6604 — extended-reach 20 m / 66.6 ft reel for long vehicle bays and agricultural equipment

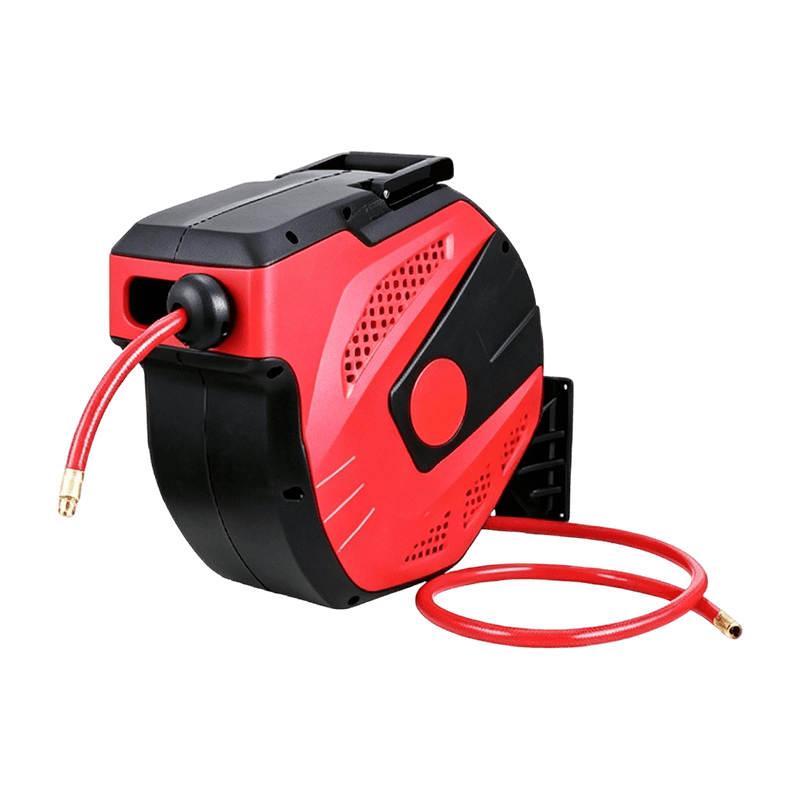

• OY6606 — dual-section 15 m reel with a 1.5 m lead-in for a short flexible drop from the supply line
• OY6607 — long-reach 25 m dual-section reel with a 2 m lead-in for heavy-reach installations

The complete Air Hose Reel manufacturer range is set out below, together with the mounting, airflow and acceptance details we work to on each order.

Retractable Air Hose Reel Range

The range is organised by reach and by the level of protection the drum needs. All five reels use a self-retracting spring mechanism that pulls the hose back evenly, and all are supplied with mounting brackets for wall or ceiling installation.

Application Fit by Model

Reach is the first variable. A 15 m hose covers a standard two-post bay; a 20 m or 25 m hose lets a technician walk around a truck, bus or tractor without moving the air supply or adding an intermediate extension that costs pressure at the joint.

The second variable is exposure. Where grinding dust, welding spatter or falling debris is present, the enclosed-housing OY6603 shields the coiled hose when it is not in use, protecting both the hose and the retraction mechanism compared with an open-frame reel in the same conditions.

• Tyre fitting and fast-fit bays — OY6602 or OY6603, mounted above the bay so the hose drops clear of the vehicle
• Body repair and paint preparation — OY6603, where airborne particles are constant
• Truck, bus and agricultural service — OY6604 for reach, OY6607 where bays are longer still
• Dual-section layouts — OY6606 and OY6607 where the supply line terminates away from the working position

Reels are frequently specified alongside our Tyre Changer range in fast-fit installations, where the same bay needs both a compressed-air drop and a wheel-service position.

Hose, Drum and Housing Construction

The reel body is built from high-strength steel with a surface finish that resists the oil, grease and moisture typical of automotive workshop environments. Load-bearing components are sized for the repeated extension and retraction cycles of a busy service bay.

• 3/8 in bore hose, matched to the airflow demand of impact wrenches, ratchets, tyre inflators, blow-off guns and spray guns
• 1/4 in outlet fitting, a widely adopted size that connects to standard quick-connect couplers without adapters
• 250 PSI / 1.7 MPa maximum rated pressure, giving margin above the working pressure of most workshop compressors
• Steel drum and housing on the enclosed model, engineered for the mechanical impact and corrosive agents found in heavy-use settings

Critical Specifications and Airflow

Airflow, not pressure alone, decides whether a reel performs on the line. Bore and fitting size are held constant across the range so that tool performance does not change when a longer hose is specified.

On the 20 m OY6604 the drum is sized to hold the additional hose volume while still retracting the full length evenly, without the bunching or resistance that appears on underpowered retract springs. Because bore and outlet dimensions are unchanged, the extended length does not reduce the airflow available at the tool.

Mounting, Installation and Compressed-Air Line Integration

Each reel ships with mounting brackets and hardware for wall or ceiling fixing. Position the unit so the hose drops vertically into the working area and retracts without rubbing against racking, lift posts or vehicle bodies.

• Confirm the mounting surface can carry the reel weight plus the dynamic load of a full hose pull
• Keep the first metre of hose clear of hot surfaces, weld return paths and moving machinery
• Fit an isolation valve and filter-regulator upstream so the reel is not the pressure-setting device
• Use the 1/4 in outlet with a matching coupler; adapters add a leak path and restrict flow
• On dual-section models, route the lead-in section from the supply line to the reel inlet and keep the joint accessible

The same compressed-air infrastructure serves air-powered equipment such as our Air Motorcycle Lift, so reel positions are usually planned together with the lift and bench layout rather than after it.

Configuration Options and OEM/ODM Support

We build the range in standard form for stock orders and configure it for private-label programmes. Logo and packaging work is handled in-house: laser marking of the customer brand on the product, colour box and carton artwork, and user manuals in English, Japanese, Spanish, French and other languages.

• Hose length and drum configuration selected against bay dimensions
• Open-frame or enclosed housing depending on the working environment
• Brand logo, colour box, carton and multi-language manual
• Structural and parameter adjustments for regional standards and usage habits
• Prototype, sample and mass-production support for exclusive new models

Air hose reels sit in the same garage equipment programme as our Shop Press range, which lets a distributor consolidate several product lines into one container and one documentation set.

Quality Control and Acceptance

Our factory operates under an ISO9001 quality management system, and core hydraulic products hold CE certification. Production runs through full inspection rather than sampling, so a defective unit is stopped before packing.

• Incoming inspection of hose, drum, spring and fitting components
• In-process checks on retraction force, hose seating and fitting torque
• Pressure test at the rated 250 PSI / 1.7 MPa before packing
• Carton and container loading check against the ordered model mix
• Shipment documentation prepared for distributor acceptance routines

Maintenance, Spare Parts and Serviceability

A hose reel is a low-maintenance item, but retraction force and hose condition decide service life. We keep spare hose, springs, fittings and drum assemblies available so a distributor can support installed units without replacing the whole reel.

• Inspect the hose for abrasion and kinks at each service interval
• Check the mounting bracket and fasteners after the first weeks of use
• Wipe grit from the hose before retraction to protect the drum and spring
• Replace the hose as a matched assembly to preserve retraction balance
• Order spare parts against the model code marked on the reel

Information We Use to Configure Your Solution

A quotation is prepared from the working point, not from a catalogue number alone. The following inputs let us confirm the model, the packing configuration and the documentation set on the first pass.

• Bay or workstation dimensions and the required hose reach
• Mounting position — wall, ceiling or column — and the surface type
• Compressor output pressure and the tools the reel will feed
• Environment: dust, spatter, moisture and impact exposure
• Number of units, model mix and target container loading
• Branding requirements: logo, packaging artwork and manual languages
• Destination market and any documentation the shipment must carry
• Trial-order quantity and the intended bulk follow-on volume

Frequently Asked Questions

What hose lengths and pressure rating do your air hose reels cover?

Our retractable reels run from 15 m / 50 ft to 25 m, with dual-section models adding a 1.5 m or 2 m lead-in. All units use a 3/8 in bore hose, a 1/4 in outlet fitting and a 250 PSI / 1.7 MPa maximum rated pressure.

Can you supply reels with our own brand and packaging?

Yes. We laser-mark customer logos on the product and produce colour boxes, cartons and multi-language manuals to the buyer's artwork. Structural and parameter adjustments are also available where a market needs a different operating configuration.

Which model suits a body shop or metalworking bay?

OY6603. Its enclosed drum housing shields the coiled hose from grinding dust, welding spatter and falling debris, which extends the working life of both the hose and the retraction mechanism compared with an open-frame reel in the same bay.

Do you accept small trial orders?

We keep minimum order quantities flexible and accept small trial orders for market testing, with more favourable unit pricing on bulk full-container quantities. The 20 ft container loading for the 15 m and 20 m models is 720 pieces.

What spare parts and after-sales support do you provide?

We supply spare hose, springs, fittings and drum assemblies, along with operation guidance for distributors supporting installed units. Parts are ordered against the model code marked on the reel.

How quickly can you respond to a technical enquiry?

Our sales and engineering team handles parameter matching, model selection and quotation support, and responds to technical enquiries within 24 hours.
