Pipe Bender Manufacturers

Product Range and Application Fit

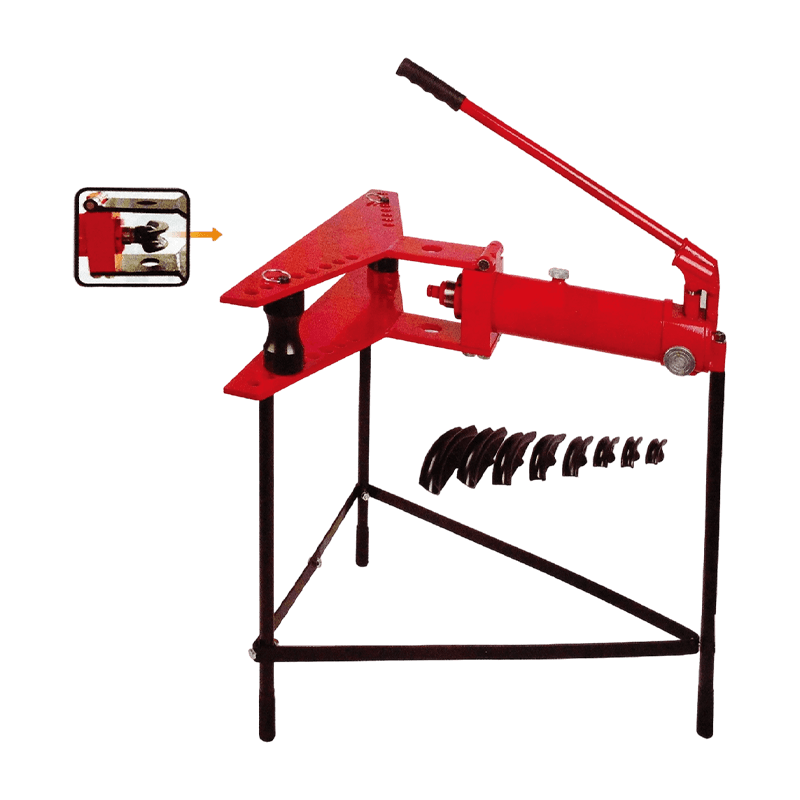

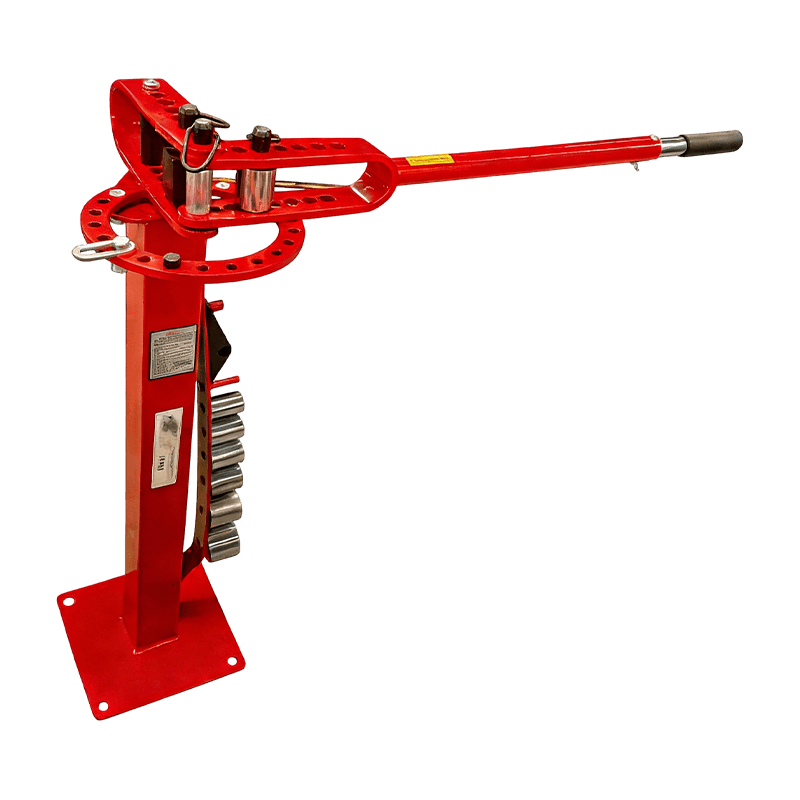

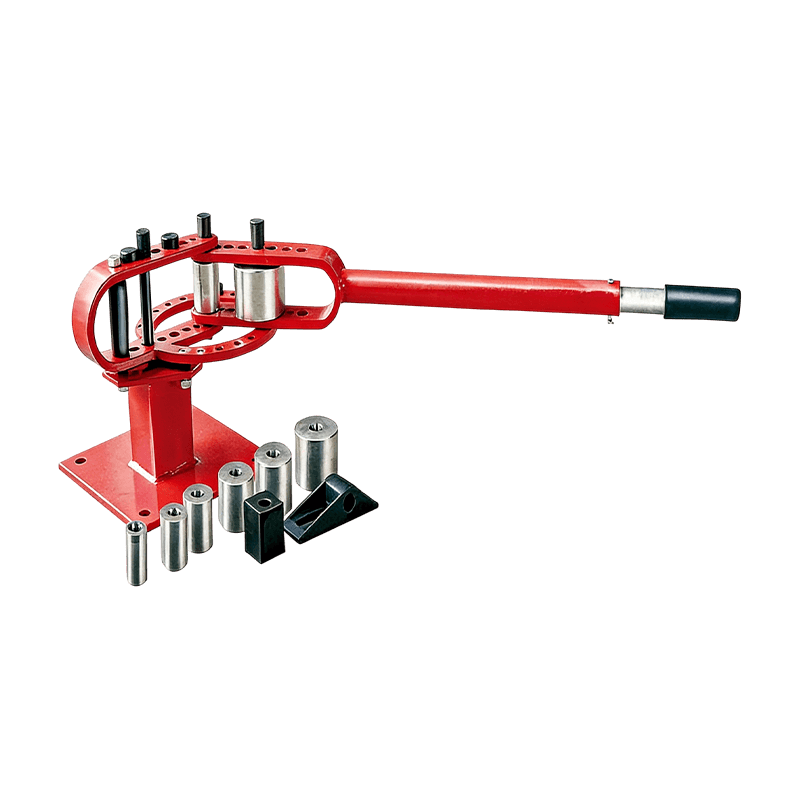

The Pipe Bender family is organized by drive method, frame orientation and pipe capacity. Vertical standing-frame models give the operator an upright working position for frequent bends; horizontal floor-mounted frames suit long pipe runs and heavy-wall sections; bench-top and portable sets cover smaller diameters where mobility matters more than tonnage.

How the Bending Force Is Generated and Controlled

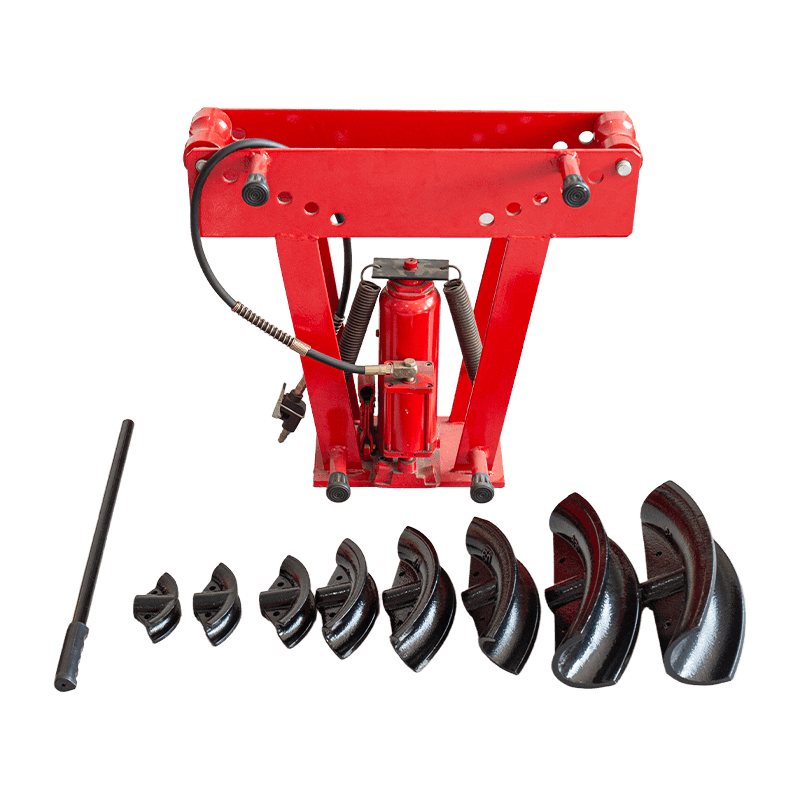

Manual hydraulic models use a hand pump to advance the ram, which keeps the machine independent of shop air and suitable for sites without a compressor. The OY2602Q replaces manual pumping with an air-over-hydraulic pump that connects to a standard shop air supply and is operated by foot pedal or hand lever, cutting operator fatigue on repetitive bends and on large-diameter heavy-wall pipe.

Force is transferred through a welded steel frame with reinforced stress points sized to withstand the full rated tonnage without deflection. Cylinder shafts and die holders are chrome-plated or hardened to resist wear and corrosion, and the removable handle allows incremental ram advance for offsets and saddle bends where full stroke would overshoot the target angle.

Pipe, Tube and Die Considerations

Bend quality depends on matching the shoe or former to the outside diameter, wall thickness and material of the workpiece. A die that is too small for the pipe will flatten the section; excessive ram travel without a correctly sized former will kink the wall. Our shoe sets are supplied in the nominal sizes listed for each model, and interchangeable dies let one frame cover a diameter range instead of committing to a single size.

• Material: mild steel, galvanized pipe, copper and aluminum tube behave differently under load; harder and thicker walls need more tonnage and slower ram advance.
• Wall thickness: heavy-wall pipe requires higher capacity and benefits from air-hydraulic actuation for controlled force.
• Bend radius and angle: the former determines the achievable radius; incremental advance supports multi-stage offsets.
• Surface condition: coated or painted pipe needs a former that will not score the finish.

Configuration Options and Customization

Beyond the standard catalog, we support OEM and ODM work for distributors and brand sellers. Logo laser marking, color box and carton artwork, and multi-language manuals in English, Japanese, Spanish and French are available. Our R&D team can adjust pressure, dimensions, appearance and operating structure to suit local industry standards and usage habits in Europe, America and Southeast Asia.

For buyers building a broader garage or workshop package, the same hydraulic platform supports complementary equipment such as a Shop Press for pressing and straightening work, and a Jack range for lifting and positioning during pipe installation.

Quality Assurance and Compliance Evidence

The factory operates under an ISO9001 quality management system, and core hydraulic products hold CE certification for European market sales. Production runs through standardized automatic lines with 100% full inspection to keep defective units out of shipments. For project and tender work, we provide the certification documents and inspection records that apply to the ordered models.

Installation, Utilities and Operator Safety

Vertical and horizontal frame benders are floor-mounted and need a level, load-bearing surface; bench-top units require a rigid bench. Air-hydraulic models need a clean, lubricated shop air supply at stable pressure, and the integrated filter and lubricator protect the pump. Portable sets need no fixed installation.

• Keep hands clear of the die throat and ram path during advance.
• Support long pipe lengths on both sides to prevent the workpiece from whipping.
• Inspect hoses, seals and the pump before each shift; replace worn seals with the correct spare.
• Follow the rated capacity; do not exceed the tonnage or shoe range marked on the machine.

Maintenance, Spare Parts and Serviceability

Hydraulic seals, hoses, pumps and die sets are the main wear items, and we supply low-cost spare parts over the life of the machine. Operation video tutorials and long-term technical guidance support distributor service teams, and quality-related failures are handled through replacement under our after-sales policy.

Packaging and Delivery Scope

Each bender ships in a carton sized to the model, with gross and net weights and container loading quantities defined per unit. Standard scope includes the frame, hydraulic ram or air-hydraulic pump, the shoe set for the ordered range, and the operating manual. Custom packaging, branded cartons and multi-language manuals are part of the OEM scope. Shipments move through Shanghai and Ningbo ports with flexible shipping solutions for both bulk orders and small trial batches.

Information We Use to Configure Your Solution

To prepare an accurate configuration and quotation, we work from the actual bending job rather than a model number alone. The following inputs let us match capacity, frame type, die set and packaging to your market.

• Pipe outside diameter range and wall thickness to be bent.
• Material type and surface finish.
• Required bend radius, angle and whether offsets or saddle bends are needed.
• Daily or batch throughput and whether shop air is available.
• Target market, applicable standard and certification needs.
• Branding, packaging and manual language requirements.
• Order quantity, trial order intent and delivery destination.

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional manufacturing factory in Jiaxing, Zhejiang, with independent production workshops and an R&D team covering hydraulic machinery and maintenance tools.

Can I order pipe benders with my own brand and packaging?

Yes. We support OEM and ODM services, including laser-printed logos, custom color boxes and cartons, and multi-language manuals.

What certifications apply to the pipe bender range?

The factory holds ISO9001 quality system certification, and core hydraulic products carry CE certification for European market sales.

What is the minimum order quantity?

MOQ is flexible for standard models. We accept small trial orders for market testing, with more favorable unit pricing on bulk full-container orders.

Which pipe sizes can a single machine bend?

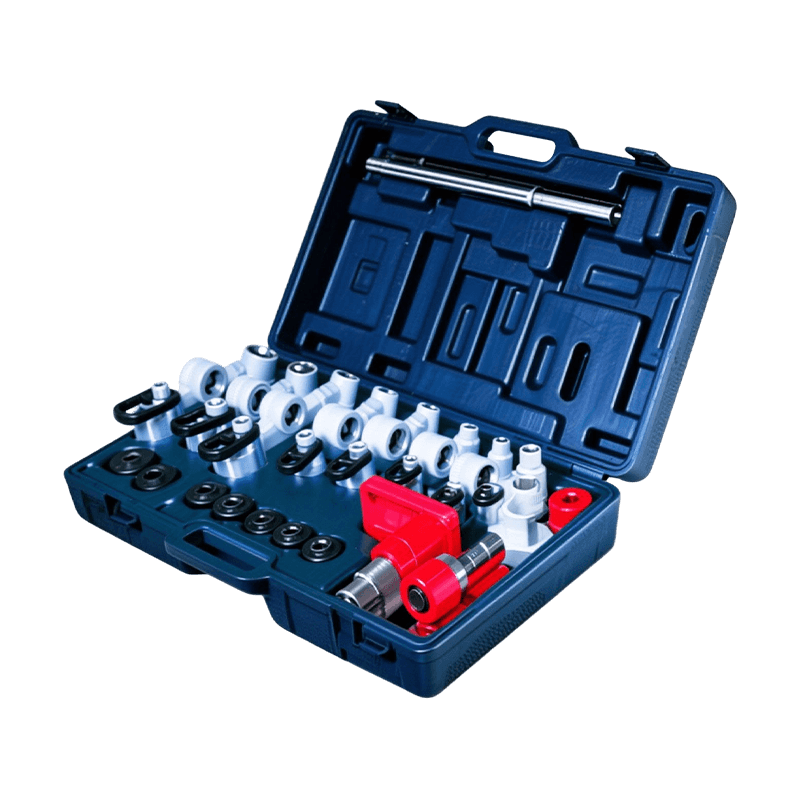

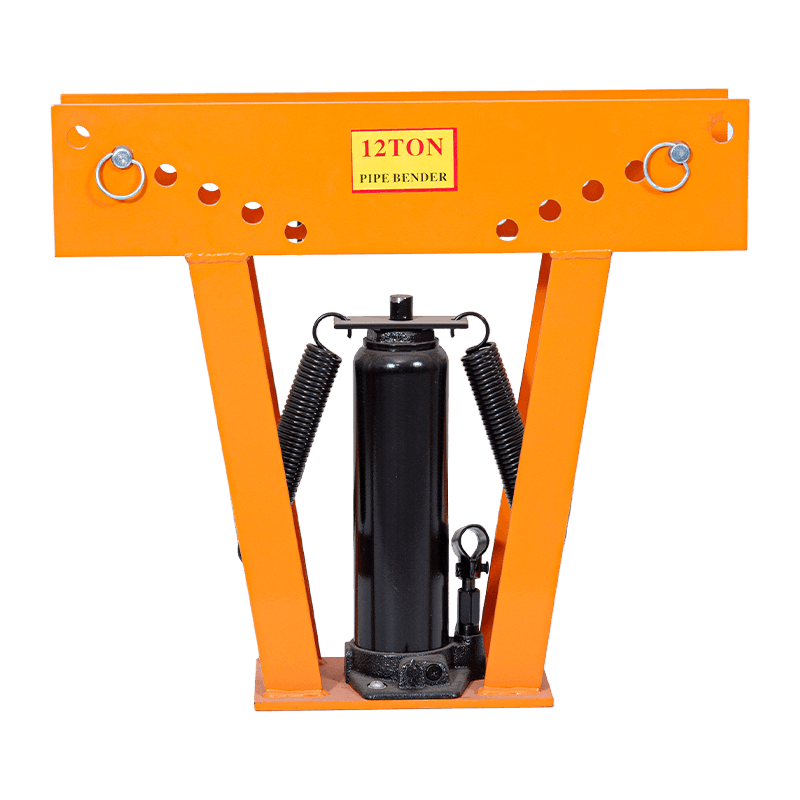

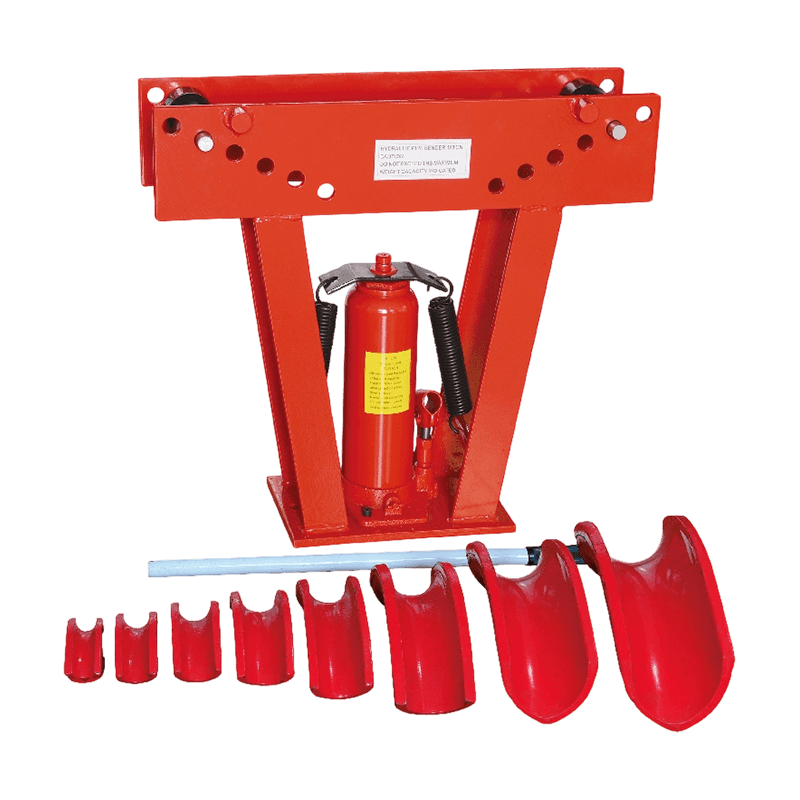

With interchangeable shoes, the 12-ton OY2601 covers 1/2" to 2", while the 16-ton OY2602 and OY2602Q cover 1/2" to 3". Bench-top and portable models handle smaller ranges down to 5/16".

Do you supply spare parts after delivery?

Yes. We provide lifelong low-cost spare parts supply covering seals, hoses, pumps and die sets, along with technical guidance and operation video tutorials.
