What an Electric Shop Press Does in a Workshop

An electric shop press converts motor power into controlled hydraulic force. The operator sets the workpiece on the table, adjusts the table height and stroke, and advances the ram with a push-button station. Because the pump is motor-driven, pressure builds consistently from one cycle to the next, which matters when the same bearing, bushing or shaft is pressed dozens of times per shift.

Typical work includes bearing removal and installation, bushing and seal pressing, shaft straightening, sheet and profile bending, and general assembly or disassembly of press-fit joints. Compared with manual hydraulic or pneumatic alternatives, the electric drive removes the physical effort of pumping and reduces the cycle-to-cycle variation that comes from operator fatigue.

• Automotive service: wheel bearings, control-arm bushings, U-joints, ball joints, transmission and differential components.
• Heavy vehicle and fleet: truck, bus and agricultural equipment pins, sleeves and suspension parts.
• Industrial maintenance: motor and pump bearings, couplings, press-fit housings, straightening of bent shafts and rails.
• Fabrication: controlled bending and forming where repeatable ram travel is preferred over hammer work.

Our Electric Shop Press Range

Two standard models anchor the range, and both accept the same table, ram and control options. Capacity selection follows the largest press-fit job in the workshop rather than the average job, because the frame and hydraulic circuit are sized around the rated tonnage.

Where a workshop prefers air-driven or fully manual operation, the same frame family is available as a Pneumatic Shop Press or a Hydraulic Shop Press, which lets a distributor carry one structural platform across several drive options.

Frame, Hydraulics and Control Configuration

The H-frame carries the load path from the ram through the table to the base. We size the uprights, cross members and table pins around the rated capacity so the structure stays stable when the press is working near its limit. The hydraulic cylinder, pump, motor and valve block are matched as a set rather than assembled from mixed ratings.

• Ram control: push-button advance, hold and retract, with pressure regulation for repeatable pressing force.
• Table adjustment: multiple pin positions for different workpiece heights; stroke length can be specified to suit the job envelope.
• Bed and tooling: press plates, V-blocks, arbor plates and adaptor noses matched to the tonnage and the parts being pressed.
• Electrical supply: motor and control voltage configured for the destination market, with the control enclosure positioned for the operator's working side.
• Mobility: fixed base or caster-mounted frame depending on whether the press stays at one bay or moves between workstations.

Because the drive is electric, the press can be integrated into a workshop cell where the operator needs both hands free during the pressing cycle. We confirm the supply characteristics, control voltage and any interlock requirement before the hydraulic circuit is finalised.

Materials, Accuracy and Repeatability

Frame steel, cylinder bore, rod surface finish and seal selection determine how the press behaves over years of service. We machine and assemble the hydraulic components in-house and inspect them before assembly, so bore tolerance, rod straightness and seal fit are controlled at the source rather than corrected after the fact.

Repeatability in a press comes from three things: a stable frame, a consistent pressure setting and a ram that returns to the same position each cycle. Electric drive supports all three. The operator sets the working pressure once, and the pump holds it while the ram advances, which is why electric presses suit production pressing where every part must see the same force.

• Force control: adjustable pressure regulation with a gauge for the working point.
• Ram travel: stroke specified to clear the tallest workpiece and still reach the shortest.
• Table flatness and pin fit: controlled so the workpiece sits square to the ram axis.
• Cycle consistency: motor-driven pump removes the variation introduced by manual pumping.

Quality Control and Acceptance

Our factory operates under an ISO 9001 quality management system, and core hydraulic products carry CE certification for European market sale. Production runs through full inspection rather than sampling, covering incoming material, machined hydraulic parts, assembly and a functional test of the completed press.

• Pressure test of the cylinder, pump and valve circuit before the press leaves the line.
• Frame and weld inspection at the structural stage.
• Functional check of ram advance, hold, retract and pressure setting.
• Electrical continuity and control-station check on the assembled unit.

For project orders we agree the acceptance scope in advance, including the test record, the inspection points and the documentation package that ships with the press. Distributors who need their own inspection protocol can have it built into the production route.

OEM, ODM and Private-Label Programmes

We supply electric shop presses under our own models and under customer brands. OEM and ODM work covers laser marking of the customer logo, colour-box and carton artwork, and multi-language manuals in English, Spanish, French, Japanese and other languages. Structural and parameter changes, such as pressure setting, frame dimensions, appearance and operating layout, are handled by our R&D team against the standards and working habits of the destination market.

For buyers developing an exclusive model, we run prototype design, sample production, testing and then volume manufacture. Low minimum order quantities are available for market trials, and unit pricing improves as orders move to full-container volume. Our wider catalogue, including Products across garage and hydraulic categories, allows a distributor to build a mixed container around the press line.

Installation, Safety and Maintenance

The press is delivered assembled or in major sub-assemblies, depending on size and shipping method, with the hydraulic circuit sealed and the control station ready for connection. Installation is a matter of positioning the frame on a level floor, connecting the specified electrical supply, and confirming the pressure setting and ram travel before the first production job.

• Operator safety: guarded working zone, controlled ram movement, and a frame that resists deflection under rated load.
• Routine maintenance: hydraulic oil level and condition, seal inspection, table pin and frame bolt checks, and control-station function test.
• Spare parts: long-term supply of seals, hoses, valves, pumps and control components at low cost to keep presses in service.
• Training: operation video tutorials and technical guidance for workshop staff and distributor service teams.

Information We Use to Configure Your Solution

A press specification is only as good as the job data behind it. We prepare the configuration and quotation from the following inputs, and we confirm the working point with you before the hydraulic circuit and frame are fixed.

Frequently Asked Questions

What tonnage should I choose for an electric shop press?

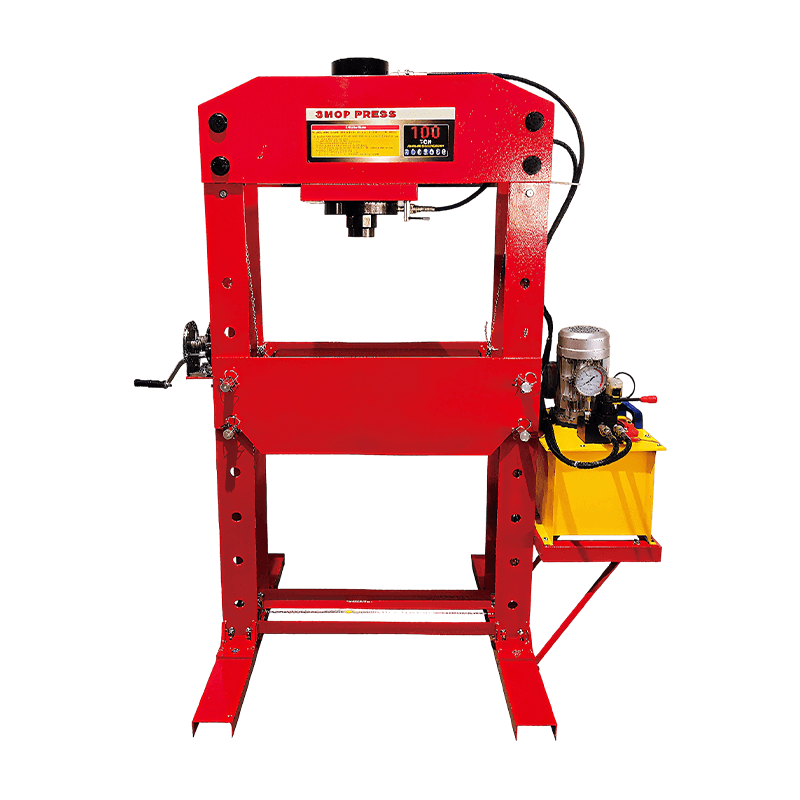

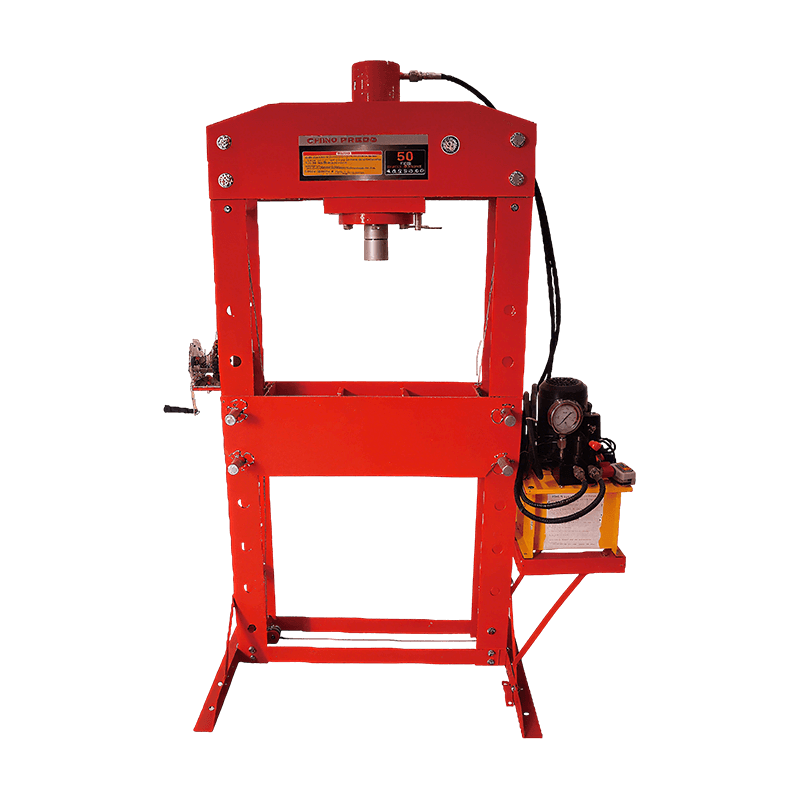

Size the press around the largest press-fit job in the workshop, not the average. Our 50-ton OY2050E covers general automotive bearing and bushing work, while the 100-ton OY20100E is intended for truck, bus, heavy equipment and industrial maintenance where larger press fits and thicker shafts are involved. If you send us the workpiece dimensions and the required force, we will confirm the model and the table and stroke configuration.

How does an electric press differ from a manual hydraulic or pneumatic press?

The electric model uses a motor-driven pump, so the ram advances under push-button control instead of manual pumping or shop-air supply. That gives consistent pressure from cycle to cycle, quieter operation and less operator fatigue. Manual and pneumatic versions remain available in the same press family where air supply or manual control suits the workshop better.

Can you produce the press under our own brand and packaging?

Yes. We provide OEM and ODM services covering laser-marked logos, custom colour boxes and cartons, and multi-language manuals. Our R&D team can also adjust pressure, dimensions, appearance and operating structure to match regional standards and user habits, and we support exclusive model development from prototype through mass production.

What certifications and quality checks apply to the electric shop press range?

Our factory operates under ISO 9001 quality system certification, and core hydraulic products hold CE certification. Production is subject to full inspection rather than sampling, including pressure testing of the hydraulic circuit, frame and weld inspection, and a functional check of ram advance, hold, retract and pressure setting before shipment.

What is the minimum order quantity and how are orders shipped?

MOQ is flexible for standard models. We accept small trial orders for market testing and offer more favourable unit pricing for bulk, full-container orders. Our Jiaxing location gives access to Shanghai Port, Ningbo Port and the Hangzhou Bay Bridge, so we arrange sea, land and air shipping to suit the order size and destination.

What after-sales support and spare parts do you provide?

We supply long-term after-sales technical guidance, operation video tutorials and replacement for quality problems, along with lifelong low-cost spare parts including seals, hoses, valves, pumps and control components. Distributors can also request service training so their own teams handle routine maintenance and seal replacement locally.
