Zhejiang Vermillion Import and Export Co., Ltd. is a hydraulic machinery manufacturer based in Jiaxing, Zhejiang, producing hand pallet trucks, manual stackers and drum transporters alongside our wider range of garage, auto repair and motorcycle maintenance equipment. Our Hand Pallet Truck manufacturer programme covers 1000 kg to 5000 kg rated capacity, with narrow, dual-width and multi-length fork sets for warehouses, distribution centres, production cells and cold-chain storage. The factory operates under an ISO9001 quality management system, and core hydraulic products carry CE certification.
Six models form the current range: four hydraulic pallet trucks, one drum transporter and one manual fork stacker. They share a welded steel frame platform, a tiller-operated hydraulic pump and polyurethane, nylon or rubber wheel options, so a facility can standardise on one truck family across several departments without changing its handling routine.
Our Hand Pallet Truck Range
| Model | Capacity (kg) | Fork width (mm) | Fork length (mm) | Lowered fork height (mm) | Primary fit |
|---|---|---|---|---|---|
| OY01DF Narrow Fork | 1000 | 510 | 910 | 85 / 75 | Narrow-aisle racking, compact cold stores, retail back-of-house |
| OY02AC Multi Fork-Length | 2000 / 2500 / 3000 | 550 / 685 | 1100 / 1150 / 1220 | 85 / 75 | Mixed pallet standards, 3PL depots, multi-format receiving |
| OY02DF Dual Fork-Width | 2000 / 2500 / 3000 | 550 / 685 | 1100 / 1220 | 85 / 75 | Facilities handling standard and wide-format pallets on one truck |
| OY03AC Heavy-Duty | 4000 / 5000 | — | — | — | Dense goods, industrial plants, heavy distribution loads |
| OY02S5 Drum Transporter | 250 | — | — | — | 200-litre oil, chemical and process drums |
| OY02S2 Manual Fork Stacker | 1000 / 1500 / 2000 | — | — | — | Low-level stacking where powered equipment is not practical |
The 2000 kg build is our highest-volume model, and the 550 × 1150 mm fork version on polyurethane wheels is the configuration most frequently specified by distributors. Both high-end and budget-oriented versions are produced on the same line, so a single order can mix specification levels for different sales channels.
Application Fit Across Warehouse, Production and Cold-Chain Environments

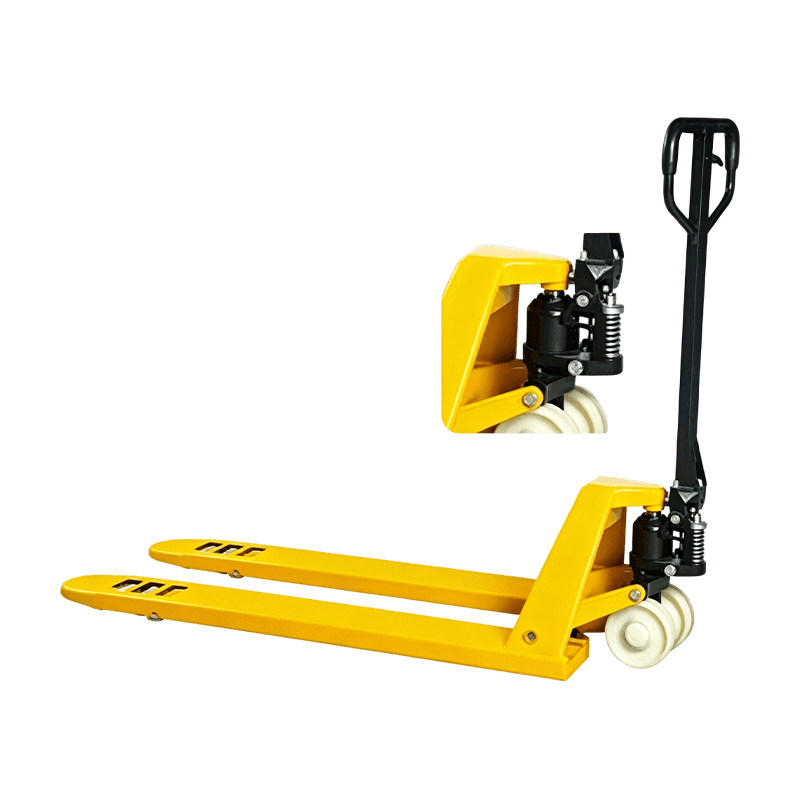

Narrow aisles and compact storage. OY01DF uses a 510 mm fork width and 910 mm fork length, giving access where a standard-width truck cannot enter. Typical sites are narrow-aisle racking, small retail stockrooms and compact cold rooms where the turning radius matters more than the load rating.

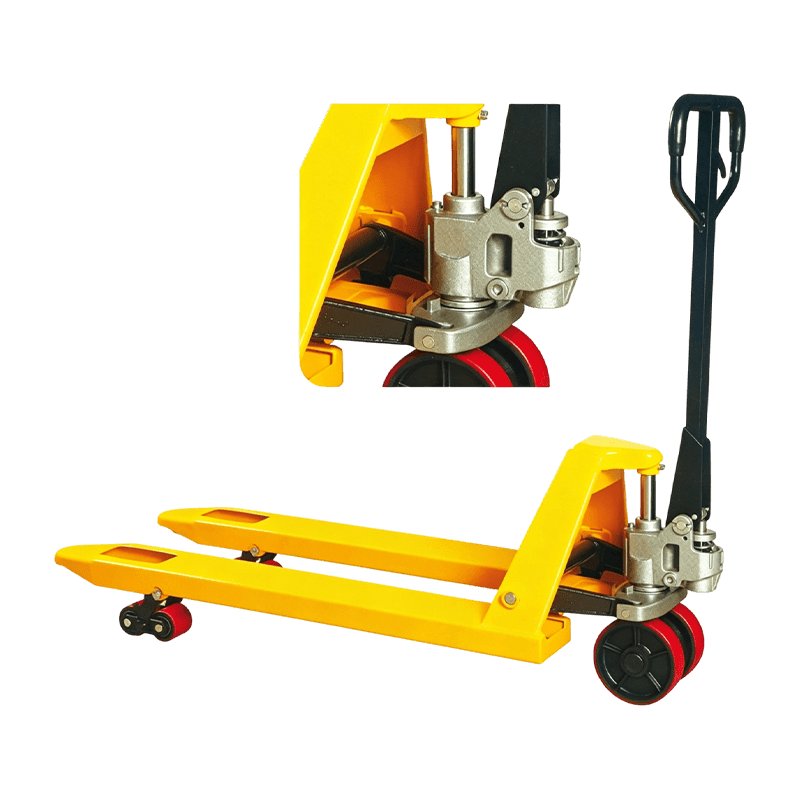

Mixed pallet standards. OY02AC combines three fork lengths with two fork widths, which suits depots receiving goods on several pallet formats, manufacturing lines fed from different suppliers, and third-party logistics operations handling a varied customer base.

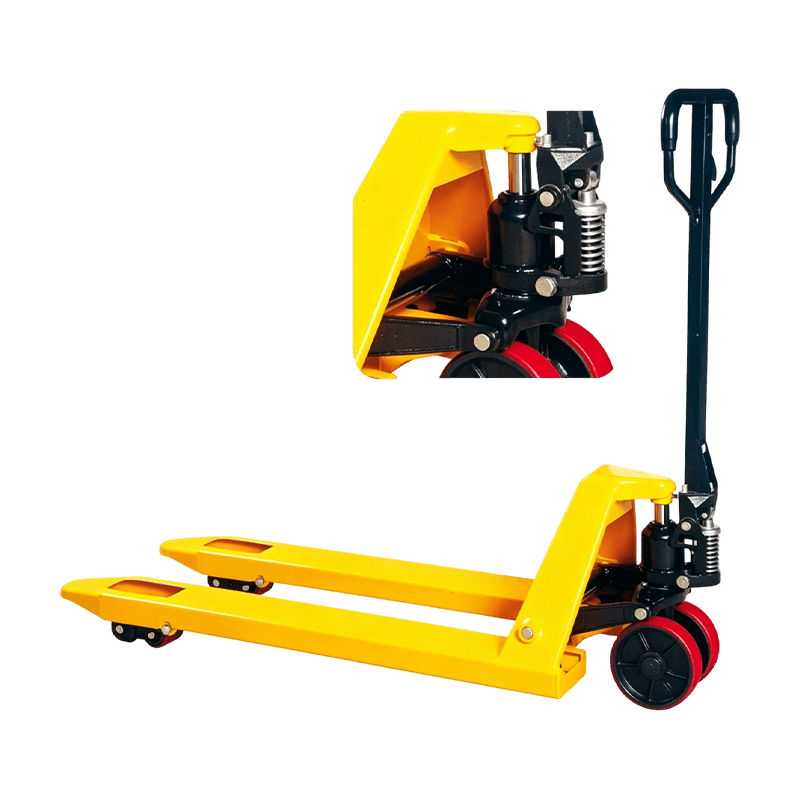

Standard and wide pallets on one truck. OY02DF carries the same 2000–3000 kg ratings with dual fork-width geometry, so a single fleet covers both pallet families without a second model on the floor.

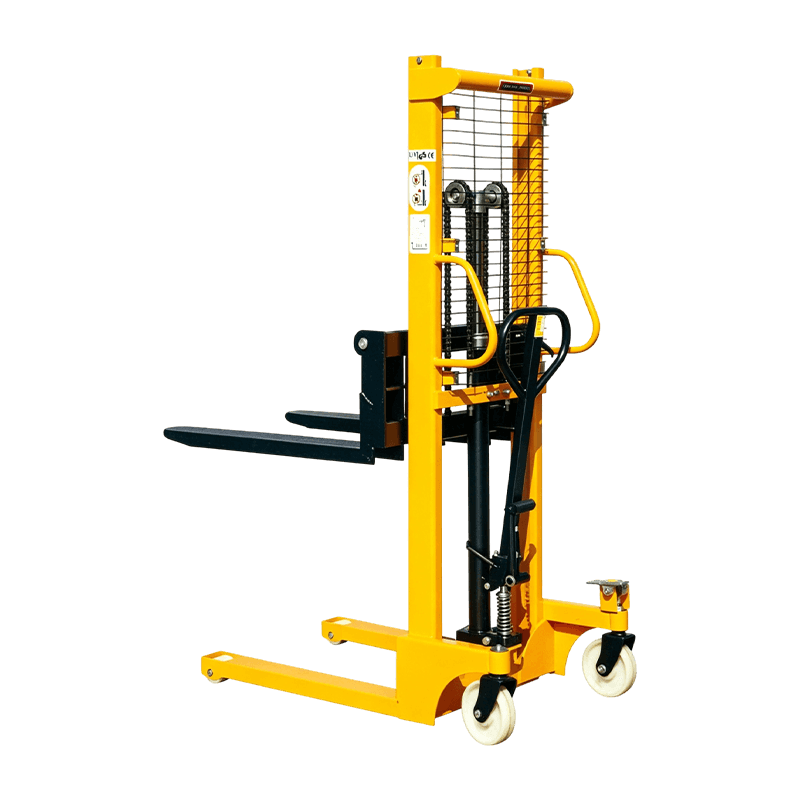

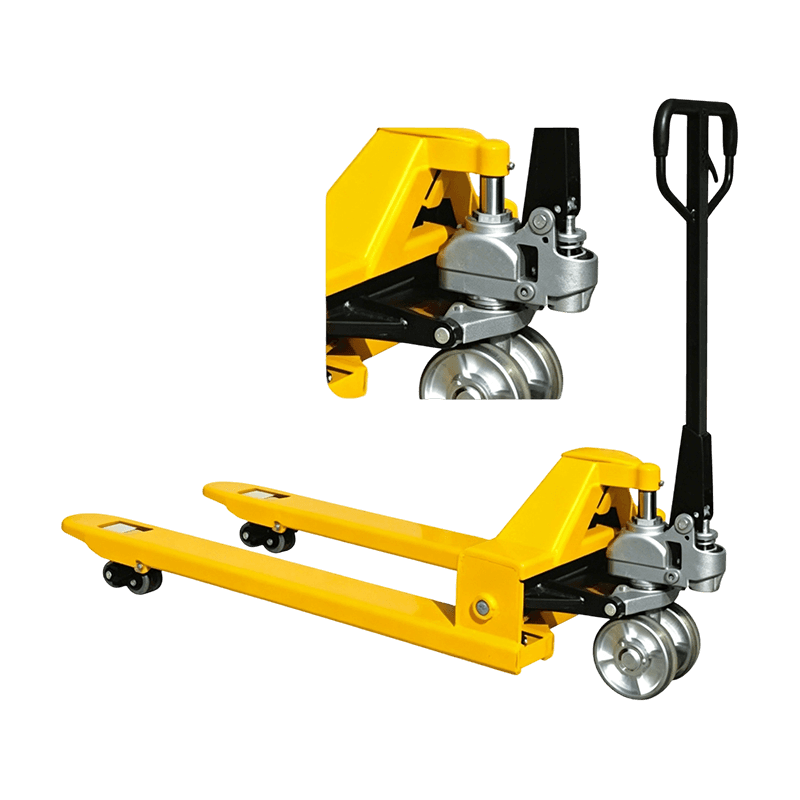

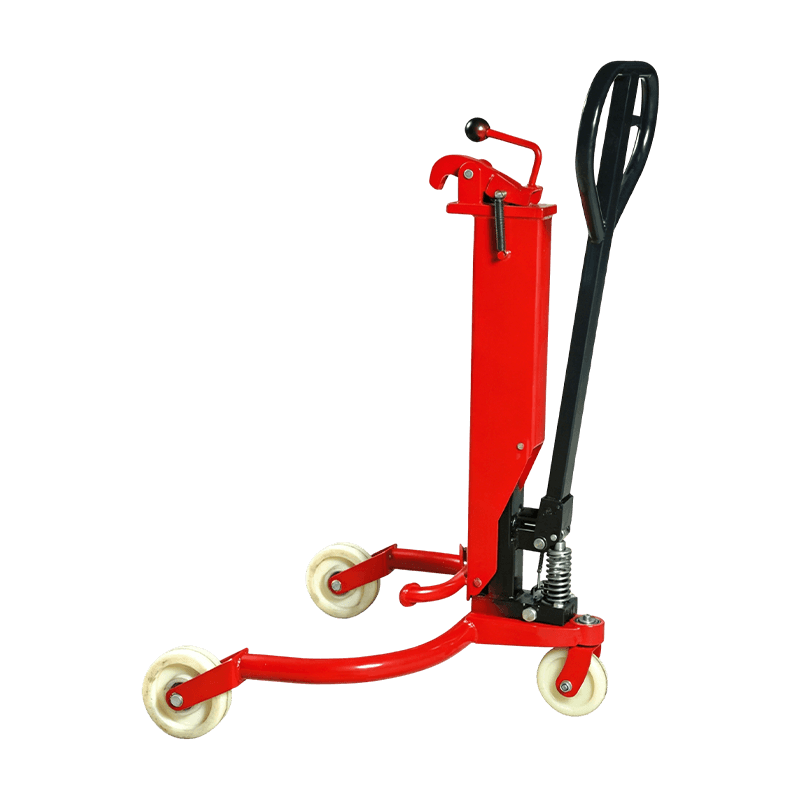

Heavy and drum handling. OY03AC extends the platform to 4000–5000 kg for dense industrial loads, while OY02S5 handles standard 200-litre drums and OY02S2 provides manual stacking at 1000–2000 kg. Workshops that also move assemblies and wheels by hand often pair these with our Wheel Dolly range and Shop Crane units for lifting work at the same stations.
Fork Geometry, Wheels and Floor Interaction
Fork selection is the first decision in any pallet truck configuration, because it fixes what the truck can physically enter. Lowered fork height across the range sits between 75 mm and 85 mm, which allows entry under pallets resting flat on the floor without raised edges. Tapered fork tips and entry rollers guide the forks into position with minimal repositioning by the operator.
- Fork width: 510 mm for narrow aisles, 550 mm and 685 mm for standard and wide pallets.
- Fork length: 910 mm for compact trucks, 1100 mm, 1150 mm and 1220 mm for standard and long pallets.
- Wheel material: polyurethane for quiet, floor-friendly rolling with low marking; nylon for higher wear resistance; rubber for rougher surfaces.
- Wheel format: single or double front wheels, with tandem load rollers on the fork arms.
- Net weight: approximately 75 kg for the 1000 kg narrow model and 80–85 kg for the 2000–3000 kg models.
Polyurethane is the usual choice for food, beverage and clean warehouse floors, while nylon suits abrasive concrete in heavier industrial areas. Matching wheel material to the actual floor surface reduces rolling resistance and keeps the truck controllable when fully loaded.
Hydraulic Pump, Capacity and Operator Effort
The lift system is a manual hydraulic pump driven through the tiller handle, with a stroke count calibrated so a single operator can raise the rated load from a natural standing position behind the truck. The tiller also carries the steering and the locking mechanism that holds the load steady when the truck is parked, preventing accidental rolling near people and racking.
Frames and fork arms are fabricated from quality steel, with welded geometry that distributes load stress evenly across the fork arms and limits structural fatigue under repeated heavy use. An integrated safety relief valve limits hydraulic pressure so the truck cannot be loaded beyond its rated capacity, protecting both the equipment and the pallet being handled. Weld joints are inspected against the load rating requirements of each model.
Configuration, Branding and OEM/ODM Options
- Logo and packaging: laser marking of the customer brand on the truck, plus colour box, carton and multi-language manuals in English, Japanese, Spanish, French and other languages.
- Structure and parameter optimisation: our R&D team adjusts pressure, dimensions, appearance and operating structure to suit regional standards and working habits in Europe, North America and Southeast Asia.
- Exclusive development: prototype design, sample production, mass production and testing for customer-specific or patented models.
- Order flexibility: low minimum order quantities for market trials, scaling to full-container volumes as distribution grows.
Container loading for the standard 2000–3000 kg models is 180 sets per 20 ft container at 550 mm fork width and 144 sets at 685 mm, which is useful when planning mixed shipments with other hydraulic tools.
Quality Control and Acceptance
Production runs through full-chain workshops, automated assembly lines and an in-house testing laboratory, with 100% inspection applied through the process rather than only at final packing. Backed by the ISO9001 quality management system and CE certification on core hydraulic products, this structure supports both bulk orders and small trial batches.
- Weld joint inspection against the declared load rating.
- Hydraulic function test through the full lift and lower cycle, including relief valve behaviour.
- Fork geometry check against the ordered width, length and lowered height.
- Wheel and roller assembly check for rolling resistance and secure mounting.
- Packaging and labelling verification against the agreed carton and manual specification.
Information We Use to Configure Your Solution
Our proposal is based on the working point, the material and the production target, not on a generic capacity figure. The following inputs let us fix the model, fork set and wheel specification before quoting.
| Project input | What it determines |
|---|---|
| Typical and peak load per pallet | Capacity class from 1000 kg up to 4000–5000 kg |
| Pallet width, length and runner spacing | Fork width 510 / 550 / 685 mm and fork length 910–1220 mm |
| Aisle width and turning space | Choice between the narrow-fork model and standard-width trucks |
| Floor surface, joints and gradients | Wheel material and single or double front wheel format |
| Lift height and pallet entry clearance | Lowered fork height 75–85 mm and entry roller configuration |
| Environment: cold store, food, chemical or general warehouse | Wheel compound, finish and cleaning considerations |
| Order volume and shipment plan | Trial batch, mixed container or full container loading |
| Branding, carton artwork and manual language | OEM/ODM setup and packaging specification |
Documentation, Spare Parts and Serviceability
Each shipment is prepared with the operating manual in the agreed language, packaging artwork and the technical data needed for customs and distributor catalogues. Our multilingual sales and engineering team handles parameter matching and quotation support, and provides operation video tutorials for end users.
Wear parts are the practical focus of long-term service: wheels and load rollers, the pump assembly, the tiller handle and its locking mechanism. We supply low-cost spare parts over the life of the product so distributors can maintain trucks locally instead of replacing them, and quality-related failures are covered by free replacement under our after-sales policy.
Frequently Asked Questions
What capacities and fork sizes does your hand pallet truck range cover?
We build 1000 kg, 2000 kg, 2500 kg, 3000 kg, 4000 kg and 5000 kg hydraulic hand pallet trucks. Fork widths are 510 mm, 550 mm and 685 mm, and fork lengths run from 910 mm to 1220 mm depending on model. The drum transporter is rated at 250 kg and the manual fork stacker at 1000 kg, 1500 kg and 2000 kg.
Which model suits narrow aisles or compact storage rooms?
OY01DF is the narrow-fork truck, with a 510 mm fork width and 910 mm fork length. It is the usual choice for narrow-aisle racking, small retail stockrooms and compact cold rooms where a standard-width truck cannot be positioned accurately.
How do you handle OEM branding and packaging?
We laser mark your logo on the truck and produce colour boxes, cartons and multi-language manuals to your artwork. Beyond branding, our R&D team can adjust pressure, dimensions and operating structure, and can develop exclusive models from prototype through to mass production.
What quality checks apply before shipment?
Production is covered by 100% inspection under our ISO9001 quality management system, with CE certification on core hydraulic products. Trucks are checked for weld conformity to the load rating, full lift and lower function including the relief valve, fork geometry against the order, wheel assembly and packaging specification.
What information do you need to prepare a quotation?
Load weight per pallet and peak load, pallet dimensions and runner spacing, aisle width, floor condition, required lift height, operating environment, order volume and branding requirements. With those inputs we fix the model, fork set, wheel specification and packing plan, and confirm the quotation.
How are spare parts and after-sales support handled?
We supply wheels, load rollers, pump assemblies and tiller components over the product lifetime at low cost, together with technical guidance and operation video tutorials. Quality-related problems are covered by free replacement, which keeps distributor service costs predictable.
