Transmission Jack Factory: Hydraulic Lifting Systems for Gearbox, Transfer Case and Differential Service
As a Transmission Jack Manufacturers, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.
Zhejiang Vermillion Import and Export Co., Ltd. is a transmission jack manufacturer and factory in China with more than three decades of hydraulic machinery experience. Our transmission jacks are built for removing, installing and transporting vehicle transmissions, transfer cases and differentials in auto repair shops, quick-service bays, specialty gearbox workshops and private garages. We integrate heavy-duty steel frames, sealed hydraulic lifting systems, adjustable tilting saddles and wheeled bases into a range that spans 0.5-ton compact units to 2-ton professional floor models.
As a Transmission Jack Manufacturer, we also support OEM/ODM programs for distributors, brand sellers and engineering customers who need private-label products, localized manuals and structure or parameter adjustment for regional markets.
Product Range and Positioning
We organize our transmission jack line by lifting capacity, pump style and base configuration so the selection can be matched to the actual job bay, vehicle type and service frequency. The line includes single-stage and dual-stage hydraulic jacks, foot-operated models, pneumatic versions, floor transmission jacks and dedicated transmission adaptors.
| Model Group | Capacity | Configuration | Best Fit |
|---|---|---|---|

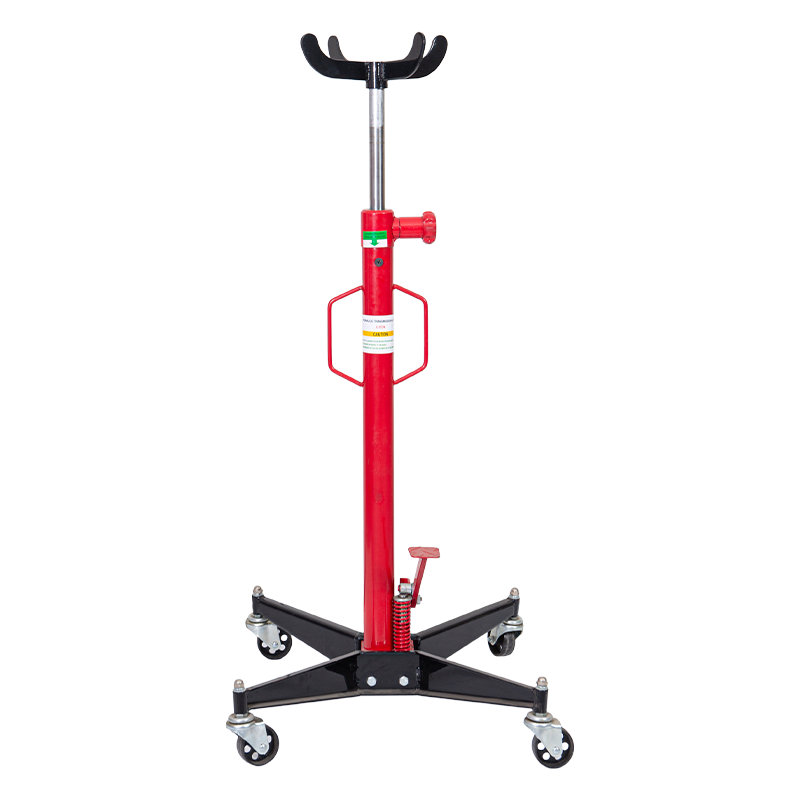

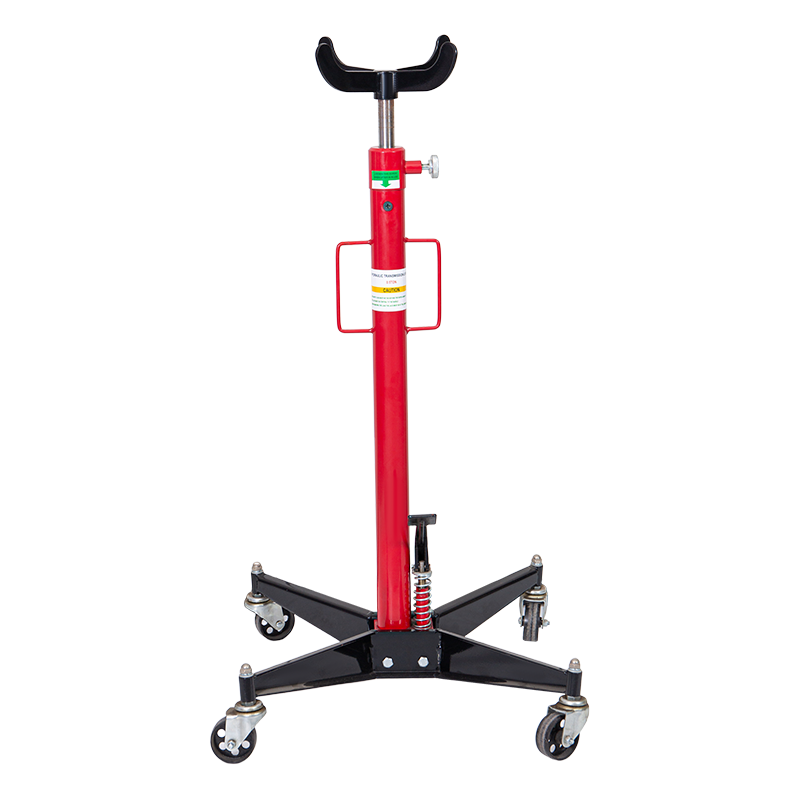

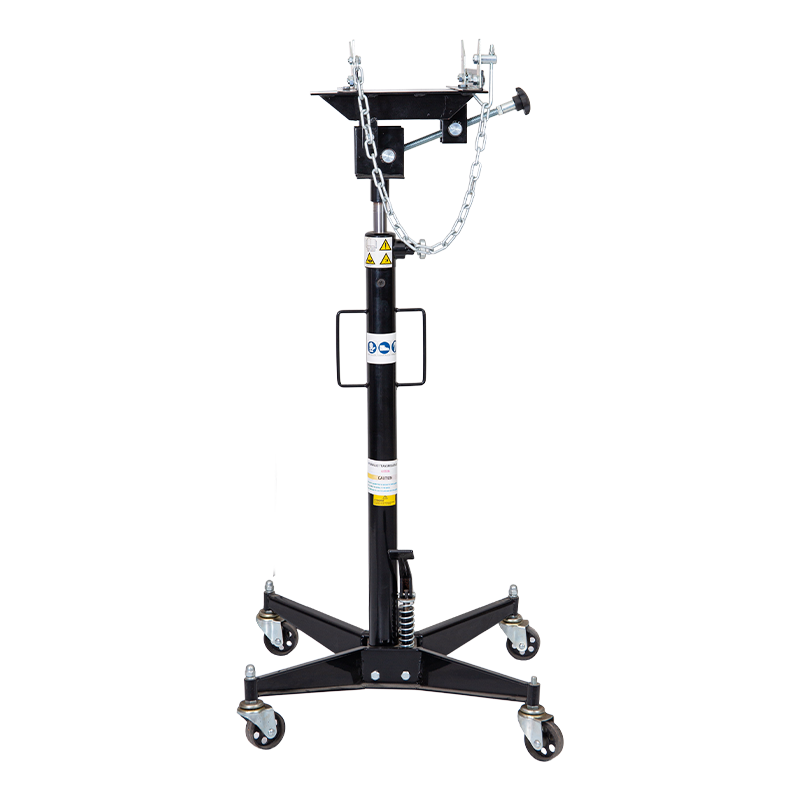

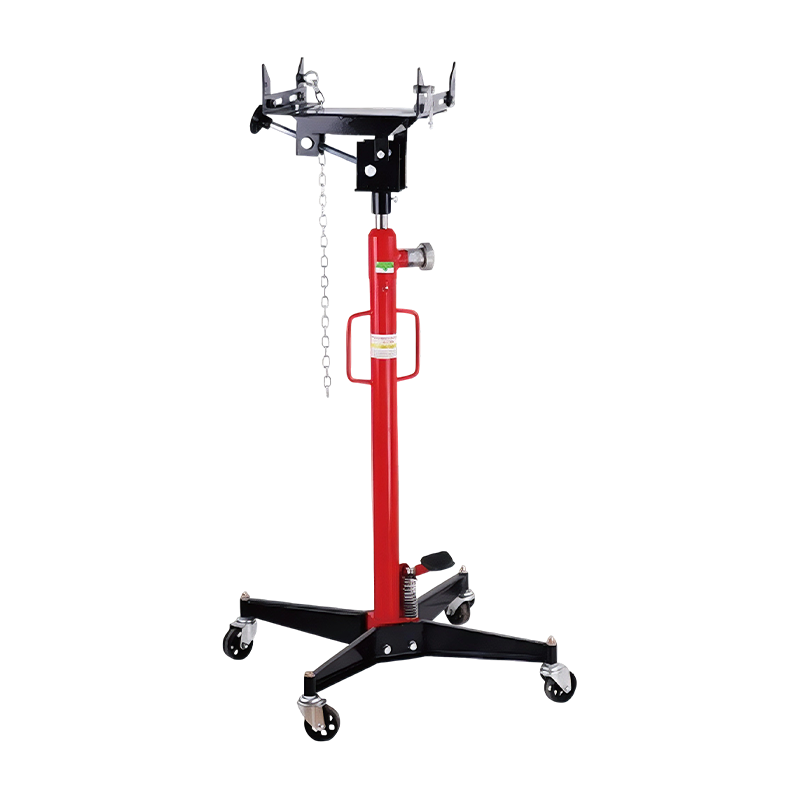

| OY1101 / OY1101A / OY1101B | 0.5 ton | Single-stage, adjustable-height or wheeled | Passenger-car gearbox removal and installation |

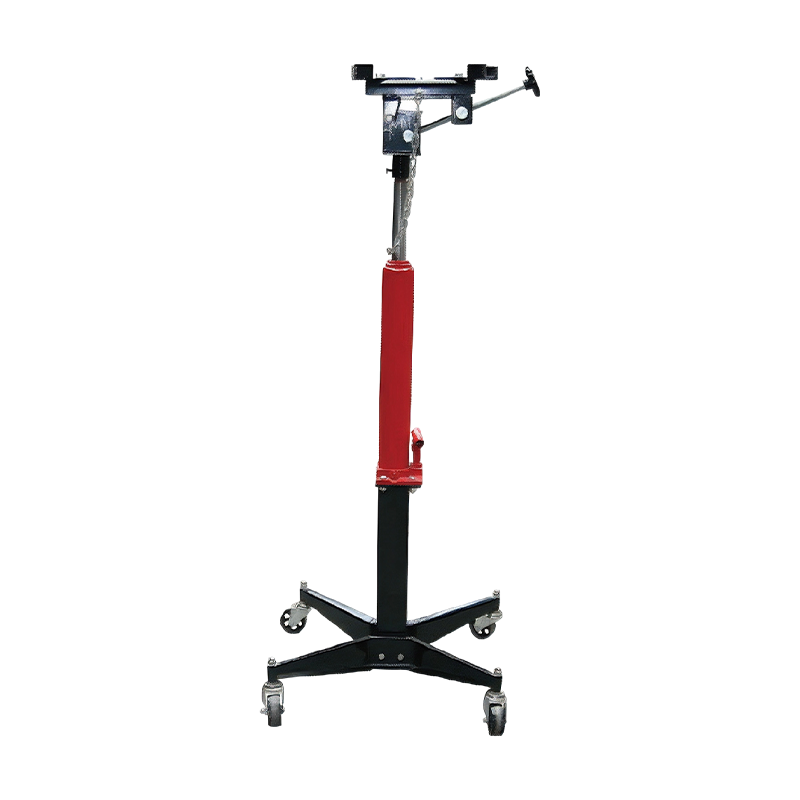

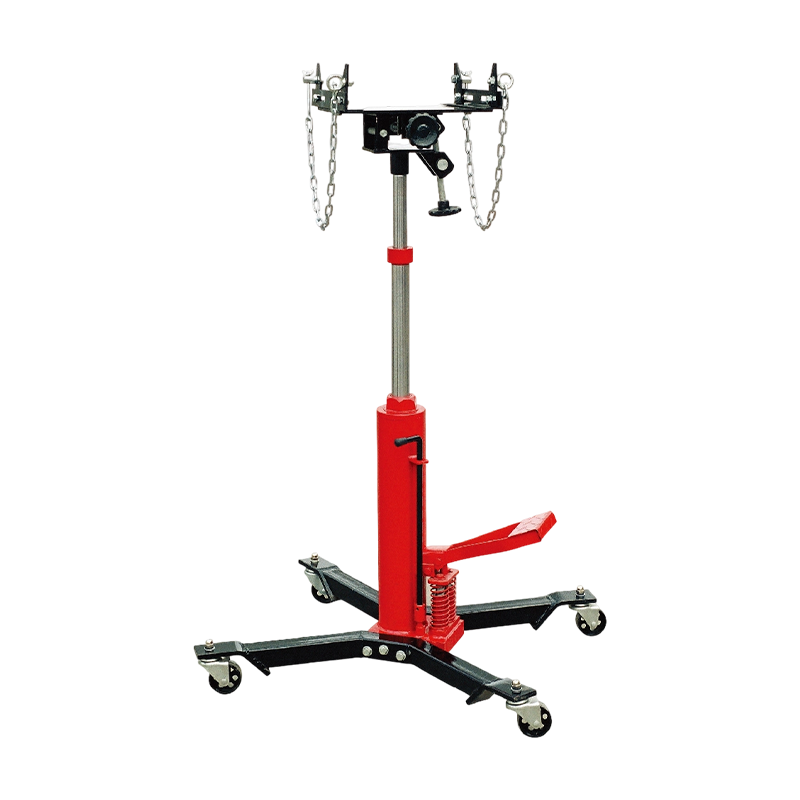

| OY1102 / OY1102B / OY1102C | 0.5 ton | Reinforced dual-stage or caster-mounted | Heavy OEM-style gearbox housings and transfer cases |

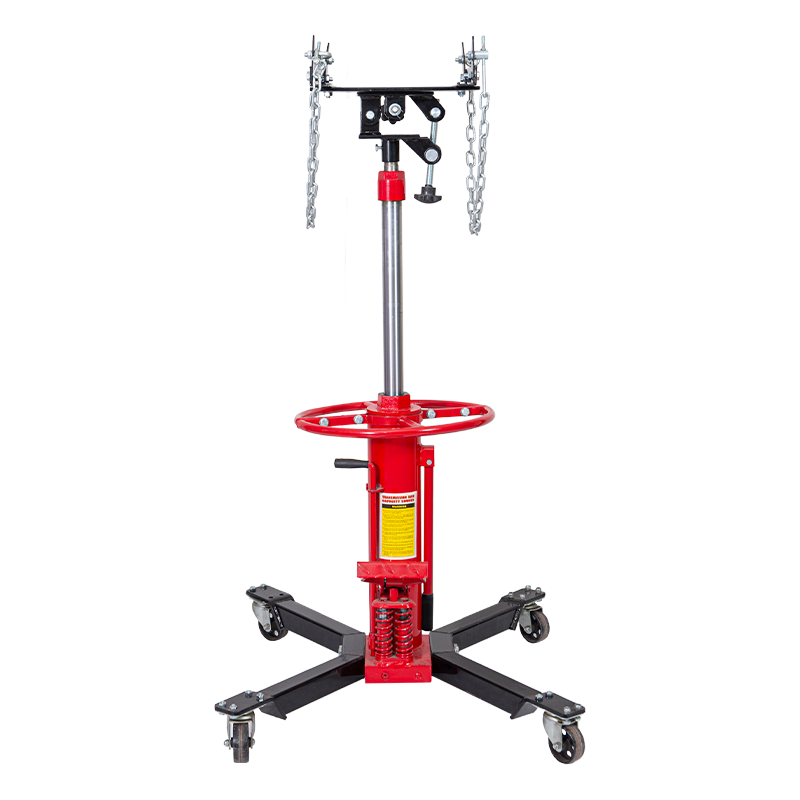

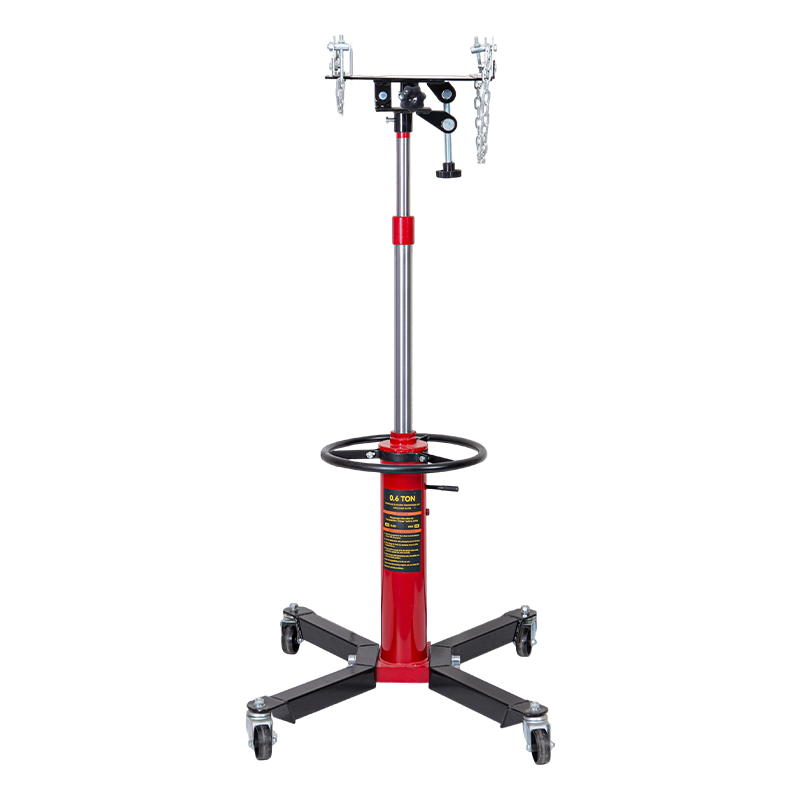

| OY1103 / OY1103N | 0.5–0.6 ton | Heavy-frame or smooth-lift | Workshop environments needing extra frame rigidity |

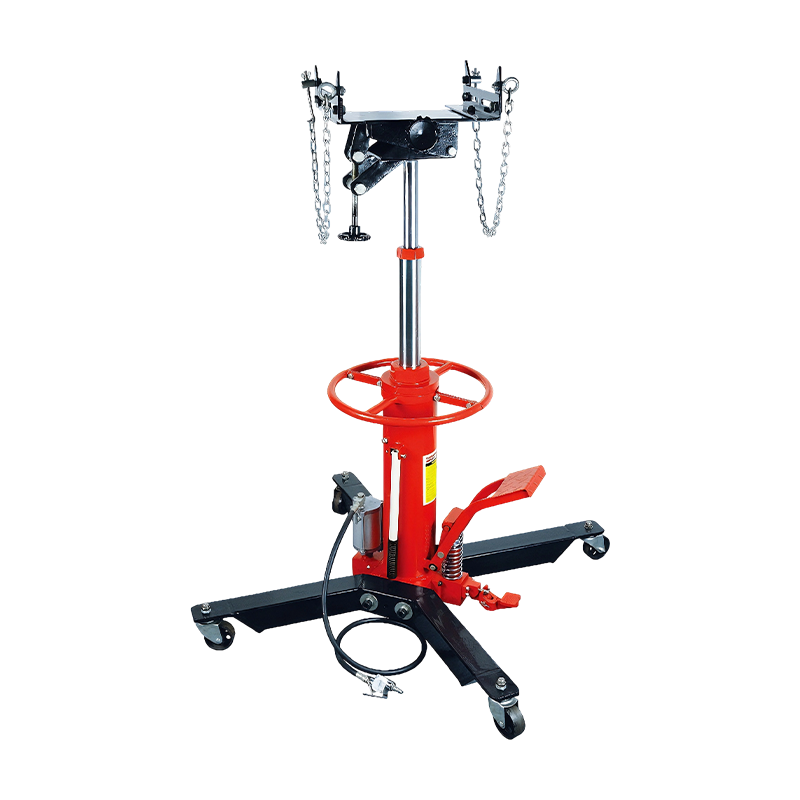

| OY1104 | 0.5 ton | Pneumatic | Fast lifts in shops with compressed-air supply |

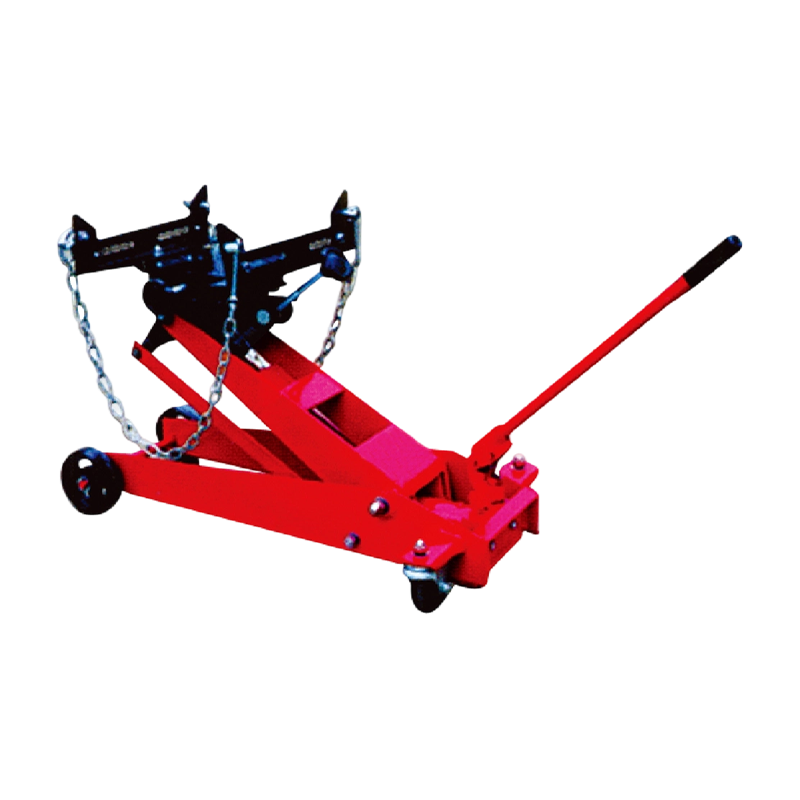

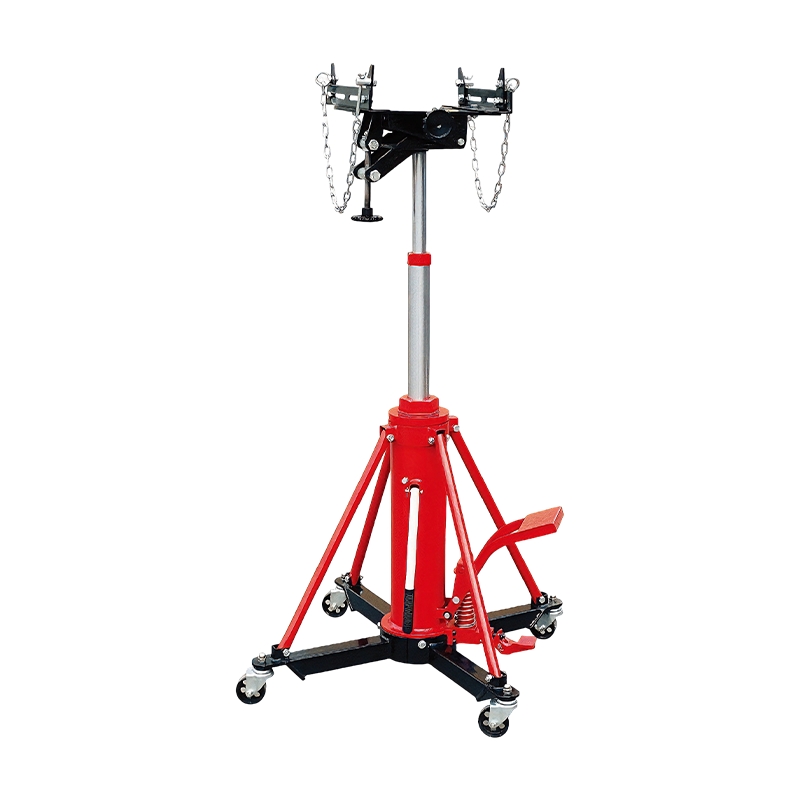

| OY1105 / OY2101 | 0.5–1 ton | Foot-pedal or handle-operated floor base | Trucks, vans and heavier driveline components |
| OY2102 / OY2103 / OY2104 | 1–2 ton | Caster-mounted industrial floor jacks | Commercial vehicles, industrial gearboxes and shop fleets |
| OYA005–OYA009 | 0.5 ton | Universal, retaining-chain or compact adaptors | Adapting a jack saddle to different transmission shapes |
Application Fit and Load Handling
Transmission work is different from general vehicle lifting. The load is often off-center, the component can shift during removal, and the saddle must reach the transmission pan or bell-housing without interfering with the subframe. Our line addresses these conditions with a tilting saddle, safety chain, and swivel casters with brakes so the load can be aligned precisely before final installation.
- Saddle tilt: Front-to-back or multi-directional tilt helps match the gearbox angle during removal and reinstallation.
- Safety chain: Holds the transmission against the saddle so the load does not slide when the jack is moved or the vehicle is raised.
- Foot pump: Keeps both hands free to guide the transmission around exhaust, driveshaft and wiring.
- Brakes: Swivel casters lock in place under the vehicle to prevent movement during the critical alignment phase.
For mixed fleets, we recommend pairing the floor transmission jack with a Pick Up Crane for engine-out jobs, and using a Car Rotisserie for full-restoration work where the shell must be rotated rather than lifted. The transmission jack remains the dedicated tool for gearbox-level handling inside the workshop.
Specifications That Matter in a Proposal
When we prepare a quotation, we match the model against the working point, the component mass, the available bay height and the operator preference for manual or pneumatic actuation. Standard specification considerations include rated capacity, minimum and maximum saddle height, saddle platform size, overall frame width, caster diameter and brake type, pump stroke efficiency, and overload valve behavior.
Configuration Options and Automation Integration
We offer hydraulic single-stage and dual-stage pump configurations, foot-operated versions, and pneumatic versions where shop air is available. The choice affects lift speed and operator fatigue. For high-volume production, pneumatic models help reduce pump cycles, but we still fit the control so the operator can inch the load during final alignment.
Our factory does not treat the transmission jack as a standalone commodity. We configure the saddle, handle length, caster set and safety features according to the workshop layout and the regional preferences of your market. For OEM/ODM projects, we adjust pressure, size, appearance and operation structure based on local industry standards and usage habits.
Quality Control and Acceptance Testing
Our manufacturing system is certified under ISO9001, and core hydraulic products hold CE certification. We perform 100% full inspection during production to avoid defective goods before shipment. Each transmission jack is checked for hydraulic leakage, load holding, saddle movement, caster rotation and brake effectiveness.
- Load test at or above rated capacity with pressure held to confirm no drop.
- Saddle tilt and safety-chain function check.
- Weld inspection on the frame and base.
- Caster and brake test on finished units.
- Paint, marking and packaging inspection before loading.
Installation, Maintenance and Serviceability
Transmission jacks arrive essentially ready to work. After removing the packing, the operator should check the hydraulic oil level, purge air from the system by opening the release valve and pumping several times, and test the brakes before first use. We include operation guidance and video tutorials with bulk orders, and our after-sales team supports long-term technical questions.
Routine maintenance is limited but important: keep the ram and pump free of grit, inspect hydraulic oil for contamination, lubricate caster swivels, and verify that the safety chain is not stretched or damaged. We supply low-cost spare parts for the life of the product, including pump units, seals, casters and release-valve assemblies.
OEM/ODM and Customization Support
As a transmission jack supplier serving global wholesalers and distributors, we offer logo laser marking, custom color boxes, cartons and multi-language user manuals. The R&D team can also develop exclusive products from prototype to mass production, including patented designs. For private-label programs, we keep a flexible MOQ so you can run a market test before committing to full-container volume.
Information We Use to Configure Your Solution
We base every transmission jack proposal on a small set of project inputs from you. Submitting these details helps us return a more accurate configuration and quotation.
| Information We Need | Why It Matters |
|---|---|
| Vehicle or component type | Determines capacity, saddle reach and base format. |
| Maximum component mass | Define whether a 0.5-ton, 1-ton or 2-ton class is required. |
| Shop air availability | Selects manual/hydraulic vs. pneumatic actuation. |
| Bay height and lift range | Confirms the saddle can reach installation height. |
| Branding and packaging format | Affects laser marking, color box and manual language. |
| Trial or bulk order plan | Aligns MOQ, sample schedule and container loading. |
Related Workshop Equipment
Transmission work is often part of a larger repair process. Alongside the Jack range, we manufacture Engine Support bars for holding the engine when the subframe is lowered, and Jack Stand products for supporting the vehicle once raised. Combining these tools lets a service bay handle a complete driveline removal without switching suppliers.
Frequently Asked Questions
What is the difference between a 0.5-ton and a 1-ton transmission jack?
The 0.5-ton class covers most car gearboxes, transfer cases and differentials. The 1-ton and 2-ton floor models add frame width, larger casters and stronger hydraulic cylinders for truck and commercial-vehicle components. Choose the capacity based on the heaviest component you handle rather than the average job.
Can I get a pneumatic transmission jack for high-volume shop use?
Yes. The OY1104 0.5-ton pneumatic model uses shop air for faster lifting while retaining controlled lowering for alignment. We can also discuss pneumatic actuation on other capacities within an OEM/ODM project if your volume supports the engineering work.
Do you support private branding on transmission jacks?
Yes. We offer free laser marking of customer logos, customized color boxes, cartons and user manuals in multiple languages. The R&D team can also adjust product parameters, appearance and operation details for your target market.
What quality checks are done before shipping?
We perform 100% full inspection during production, including hydraulic leak tests, load-holding checks, saddle tilt function, brake effectiveness and packaging inspection. The factory operates under ISO9001, with CE certification on core hydraulic products.
What is your MOQ for transmission jacks?
Our MOQ is flexible. For standard models, we accept small trial orders so you can test the market. For OEM/ODM products or full-container orders, we provide more favorable unit pricing and work with your sales plan.
