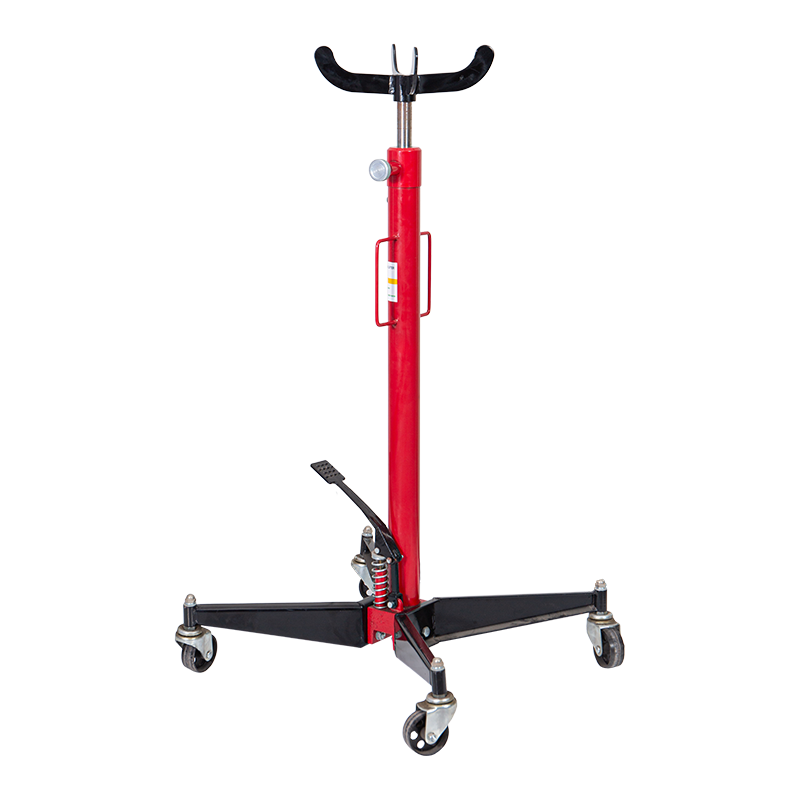

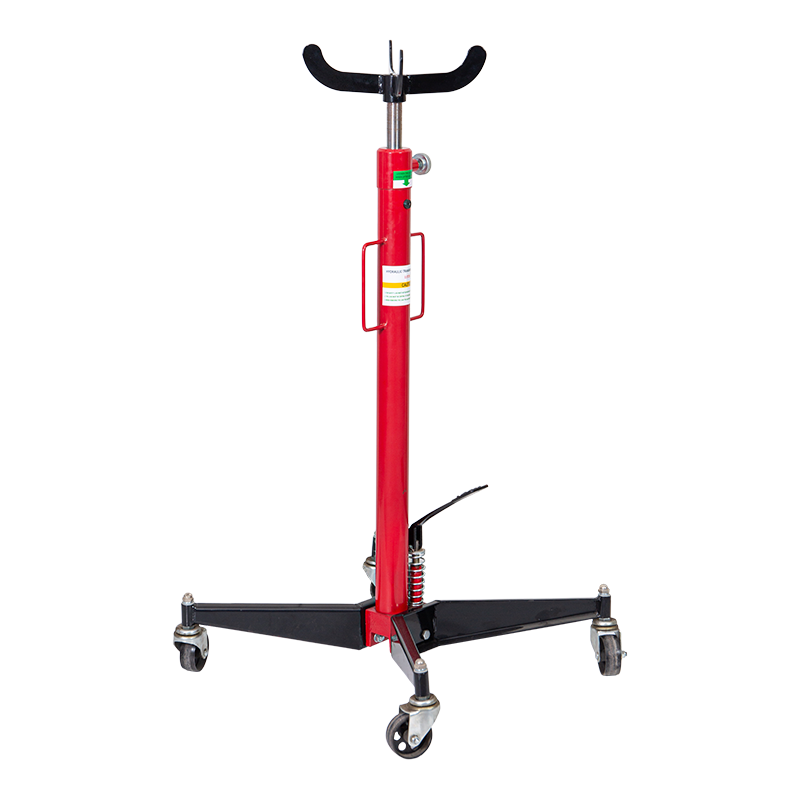

OY1101-L 0.5Ton foot-operated Transmission Jack

The OY1101-L is the featherweight variant of the OY1101 platform, engineered specifically for workshops where the transmission jack is moved between bays or between floors multiple times each working day. At just 25 kg,the OY1101-L reduces the cumulative physical effort required to reposition the tool over the course of a full shift, a real benefit in multi-bay shops and for technicians working alone.

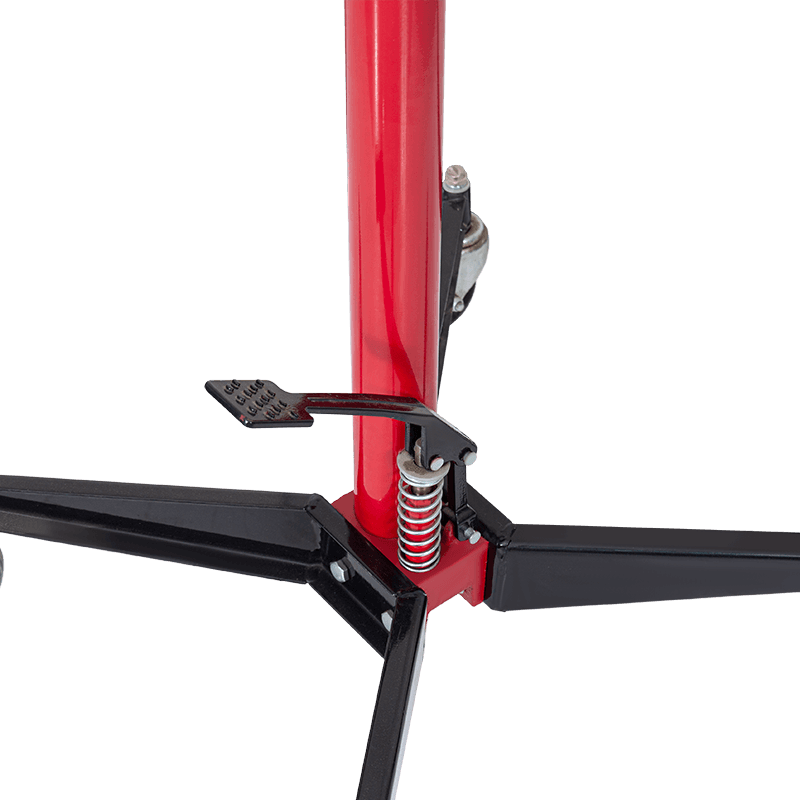

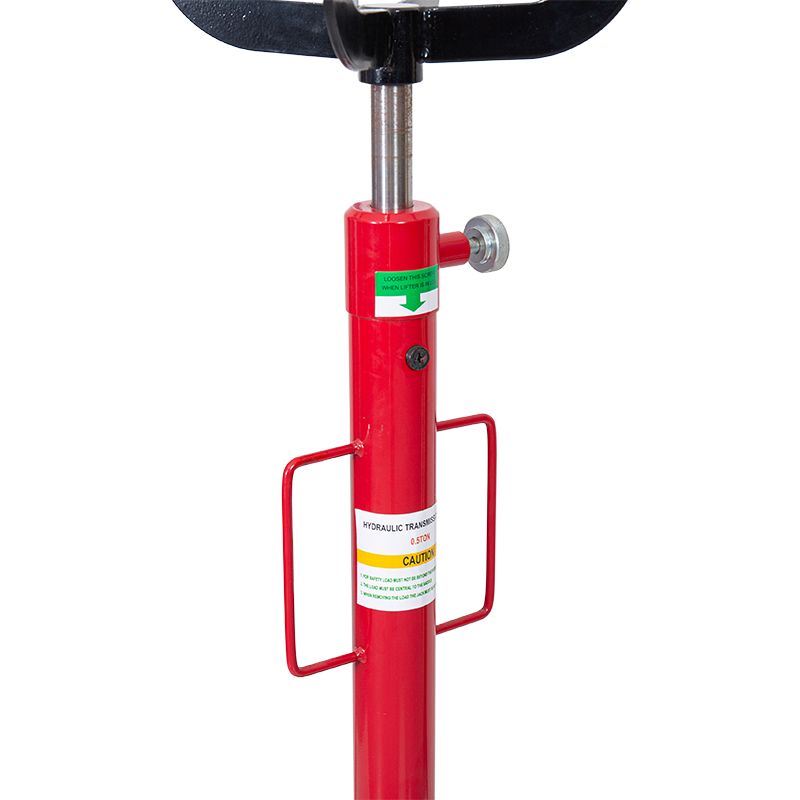

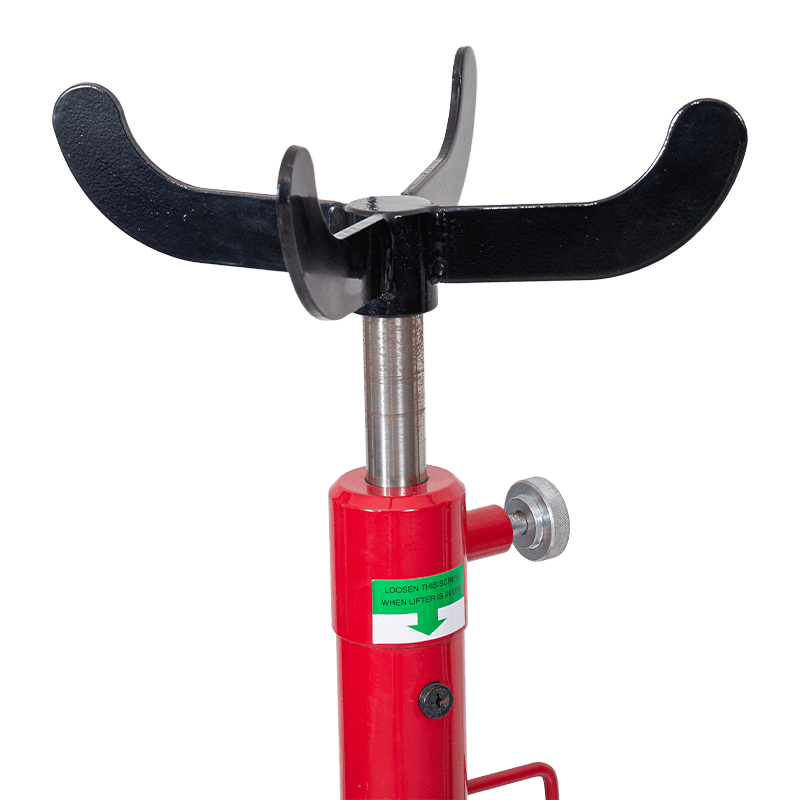

The weight reduction is achieved through material optimization in the non-load-bearing sections of the frame and base, specifically the lower spoke geometry and the handle assembly, while maintaining identical specifications in all structurally critical areas. The hydraulic cylinder, saddle mount, and locking collar carry the same steel grade and weld specifications as the full-weight OY1101, ensuring the 0.5-ton rated capacity and 815 mm single-stage stroke are fully preserved.

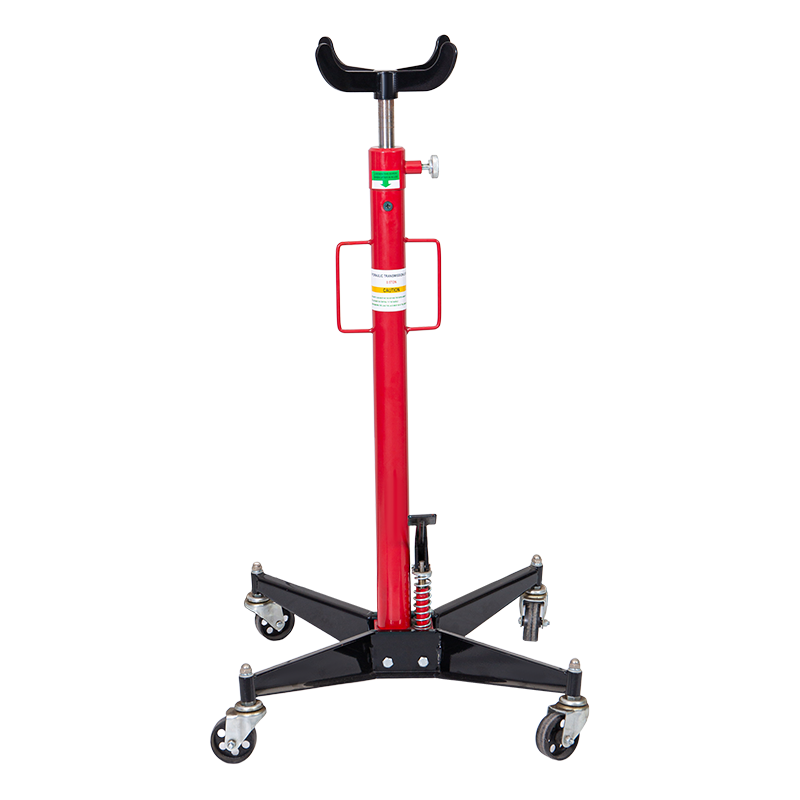

The height range of 1100 to 1900 mm covers the same vehicle population as the standard model, and the five-caster star base retains the wide footprint that resists tipping at full extension. The package dimensions of 108 × 16.5 × 30 cm are slightly more compact, improving logistics efficiency for distributors and retailers handling this model at volume.
