Engine Support Manufacturers

What Our Engine Support Range Covers

An engine support holds the engine from above while the vehicle remains on a lift or stands, transferring load to the fender rails or strut towers through an adjustable crossbar. Our range is deliberately narrow in capacity but broad in adjustment, because most passenger-car engine bays fall within a predictable width band and most service operations need the same thing: stable overhead support with enough vertical and horizontal travel to reach mounts, bell housings and subframes.

We offer two rated capacities and four working lengths. The 0.3-ton compact bar suits small engines and light components, while the 0.5-ton models cover four-cylinder and many six-cylinder engines. A universal 2-ton gross beam adaptor extends the system for heavier or wider applications.

Application Fit by Model

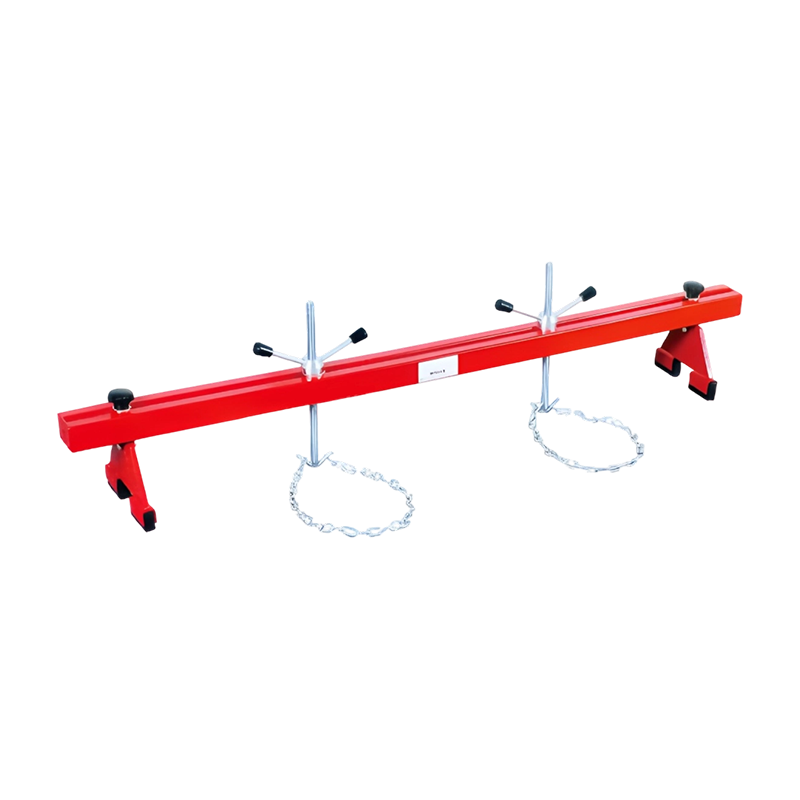

Each model in the range addresses a different service profile. The OY2502 quick-adjust bar is the standard choice for busy workshops because its sliding sleeve and locking pin system set the span without tools across 730–1480 mm, covering compact hatchbacks through full-size sedans. The OY2502E uses a heavy-duty adjustable chain instead of a fixed hook, giving technicians fine vertical control when aligning engine mounts, crossmembers or transmission bell housings.

The OY2501 compact bar is built for small engines and lightweight components, with a 1015–1380 mm span and a threaded collar or sliding lock that adjusts in small increments. The OY5109B provides in-vehicle support through a different mechanical architecture for applications where the standard crossbar geometry is less convenient. The OY2503 universal 2-ton gross beam adaptor extends the same system to heavier or wider powertrains.

Materials, Safety and Load Path

The bar body is manufactured from steel section with a protective surface treatment that resists oil, coolant and brake fluid contamination common in the engine bay. Load hooks are heat-treated for strength and include a safety latch that prevents the chain from jumping off during lifting. On the OY2502E, all load-bearing components are fabricated from high-strength alloy steel and finished with a corrosion-resistant powder coating.

Safe operation depends on correct load distribution. The crossbar rests on the fender rails or strut tower mounting points, and the engine weight must be evenly balanced before any fasteners are released. We recommend checking that all connections are fully tightened and that the adjustment mechanism is positively locked before applying load.

Configuration and OEM/ODM Options

We build engine supports as standard models or as customized units for distributors and brand sellers. Our R&D team adjusts pressure, size, appearance and operation structure according to local industry standards and usage habits in Europe, America, Southeast Asia and other regions. Logo and packaging customization includes free laser marking of customer brand logo, custom color boxes, cartons and multi-language manuals.

• Capacity selection: 0.3 ton for small engines, 0.5 ton for four- and six-cylinder engines, 2-ton beam adaptor for heavier applications.
• Working span: 730–1480 mm or 1015–1380 mm depending on model and vehicle bay width.
• Hook type: fixed hook with safety latch or adjustable chain system.
• Surface finish: protective treatment or corrosion-resistant powder coating.
• Packaging: standard carton or customized color box with branded manual.

Quality Control and Acceptance

Our factory operates under an ISO9001 quality management system, and core hydraulic products hold CE certification for European market sales. We implement 100% full inspection throughout production to avoid defective goods. For engine supports, this covers material verification, weld and joint inspection, load-bearing component checks, adjustment mechanism function and surface finish.

Acceptance testing for bulk orders follows the agreed specification: rated capacity, working range, adjust height, gross weight and packaging dimensions. We can supply inspection records and test data with shipment documentation when required by the order.

Related Garage Equipment

Engine support bars work alongside other lifting and holding equipment in a workshop. Our wider range includes Engine Stand units for full engine removal and rebuilding, Transmission Jack for gearbox handling, and Shop Crane for lifting engines and components in and out of the bay. Distributors often combine these categories in a single container order to reduce freight cost per unit.

Information We Use to Configure Your Solution

To prepare an accurate engine support configuration and quotation, we need the following project inputs. The more detail you provide, the faster we can match the right model and packaging.

• Target vehicle types and engine weights (four-cylinder, V6, small V8, compact cars).
• Required working span or engine bay width range.
• Preferred hook type: fixed hook with safety latch or adjustable chain.
• Order quantity and whether trial orders or full-container volumes are planned.
• Branding requirements: logo marking, color box, carton, manual language.
• Destination market and any local standards or certification needs.
• Packaging and shipping preferences, including port of discharge.

Frequently Asked Questions

What capacities and working ranges do your engine supports cover?

We offer 0.3-ton and 0.5-ton rated capacities. Working ranges are 730–1480 mm for the 0.5-ton models and 1015–1380 mm for the 0.3-ton compact model. A 2-ton universal gross beam adaptor extends the system for heavier applications.

Can I order engine supports with my own brand logo and packaging?

Yes. We provide OEM and ODM services including free laser marking of your brand logo, custom color boxes, cartons and multi-language manuals in English, Spanish, French and other languages. Our R&D team can also adjust product structure and parameters to match regional standards.

What is the minimum order quantity for engine supports?

For regular standard models, the MOQ is flexible. We accept small trial orders for market testing, and unit pricing becomes more favorable for bulk full-container orders. The OY2502 and OY2502E both load 1100 units per 20-foot container.

Which certifications apply to your engine support products?

Our factory has passed ISO9001 quality system certification, and core hydraulic products hold CE certification for European market sales. We implement 100% full inspection throughout production and can supply inspection records with shipment documentation.

Do you provide spare parts and after-sales support for engine supports?

We provide long-term after-sales technical guidance, operation video tutorials and free replacement for quality problems. Lifelong low-cost spare parts supply is available to reduce maintenance costs for distributors and end users.

How do I choose between the OY2502 and OY2502E?

The OY2502 uses a sliding sleeve with locking pin for quick tool-free span adjustment and suits general transmission and subframe work. The OY2502E uses an adjustable chain system for precise vertical positioning, which is preferable for engine mount replacement and alignment tasks where fine height control matters.
