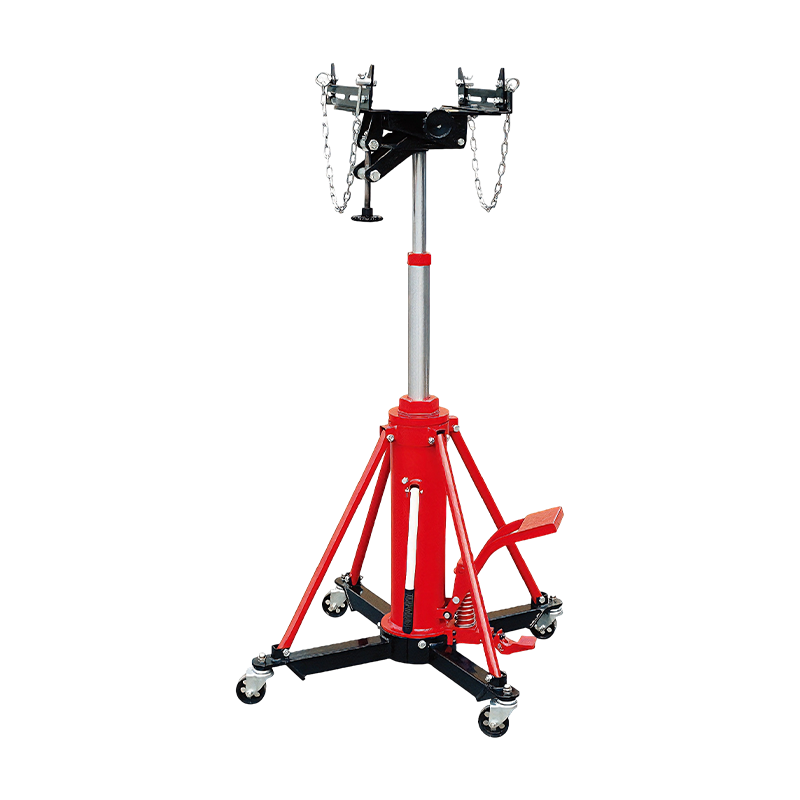

OY1105 1Ton with foot pedal Transmission Jack

The OY1105 is a1‑ton transmission jack with a dedicated foot pedal control, designed for automotive technicians who prioritize hands‑free operation during transmission removal and installation. Rated at 1 tons, this jack safely handles passenger car transmissions, transaxles, and transfer cases.Unlike jacks that require the operator to reach down or use a separate handle, the OY1105 allows both hands to remain fully engaged with the transmission – guiding, steadying, and securing the load – while the foot effortlessly pumps the hydraulic ram. This hands‑free design significantly improves safety and precision, especially during the critical final alignment when the transmission must be guided into the bell housing without cross‑threading or binding.

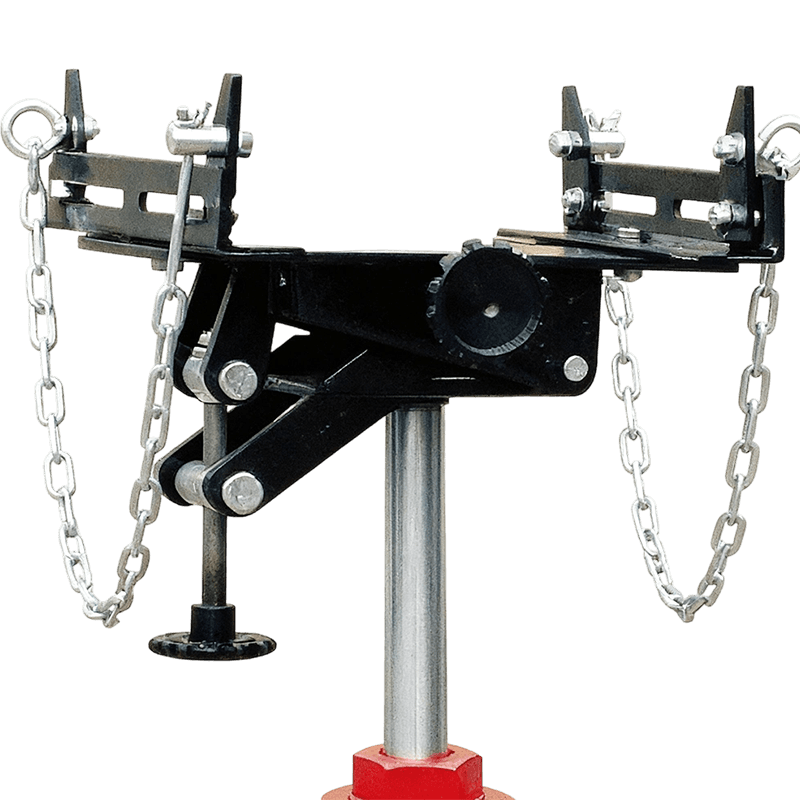

The jack features a rugged welded steel frame with a low‑profile chassis that slides easily under vehicles on lifts or jack stands. The saddle tilts in two planes – side‑to‑side and front‑to‑back – via independent threaded knobs, allowing fine angular adjustment without moving the jack base.

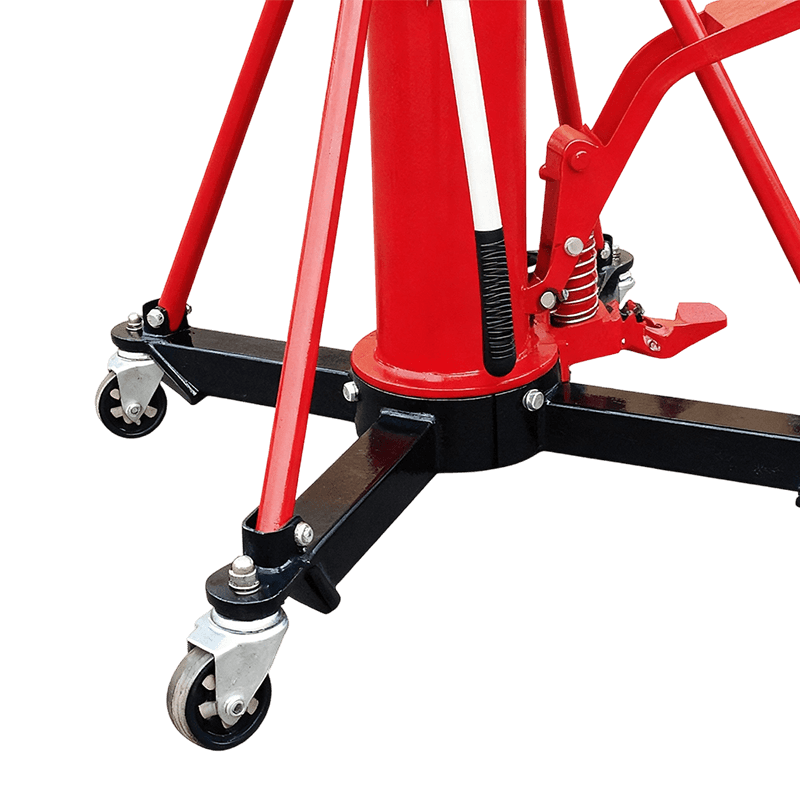

The hydraulic system is specifically tuned for foot pedal operation. The pedal has a large non‑slip surface and a short, natural stroke that reduces calf fatigue. A two‑speed pump design provides rapid saddle rise when unloaded and switches automatically to a high‑pressure, low‑flow mode once resistance is met – delivering smooth, predictable lifting. Four swivel casters provide stable mobility, and the jack weighs 77kg – light enough to maneuver but heavy enough to remain stable under load.
