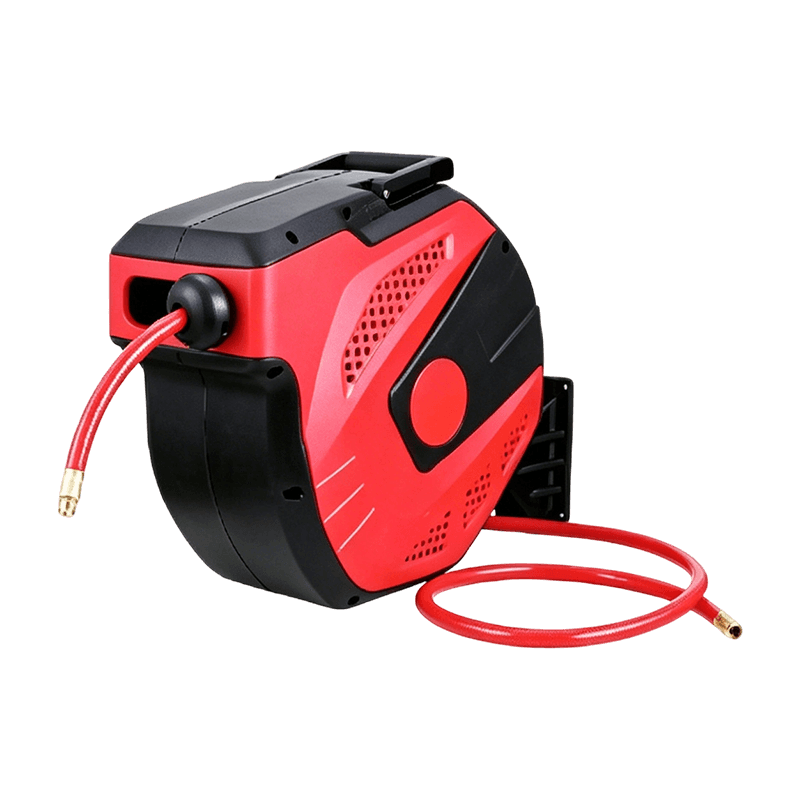

OY6606 Dual-Section 15M Air Hose Reel with Lead-In

OY6606 combines a 15-metre main working hose with a 1.5-metre lead-in section, providing a short flexible drop from a ceiling or wall mount that absorbs lateral movement as the technician works around the vehicle. This two-section configuration reduces stress at the reel outlet fitting caused by frequent angular pulls.

The main hose bore is 3/8 inch at 19.5mm, which supports the airflow demands of higher-consumption tools such as impact wrenches and sanders. The 1/4-inch BSPT outlet connects to standard workshop air tool couplings, maintaining broad equipment compatibility.

OY6606 is rated to a working pressure of 150 PSI, aligned with the regulated output pressure of most workshop compressor systems in Europe and Asia Pacific. The reel mechanism is calibrated to retract the combined 16.5-metre total hose length smoothly and without manual assistance.

The reel drum and outer housing are fabricated from steel with a corrosion-inhibiting surface treatment. The design accounts for the increased mechanical load placed on the retract spring when reeling in the longer combined hose length under tension.

OY6606 is suited to workshops where the air supply point is positioned overhead and the working area requires both reach and the directional flexibility provided by the lead-in section. It is a common choice for general automotive servicing and mid-volume production environments.
