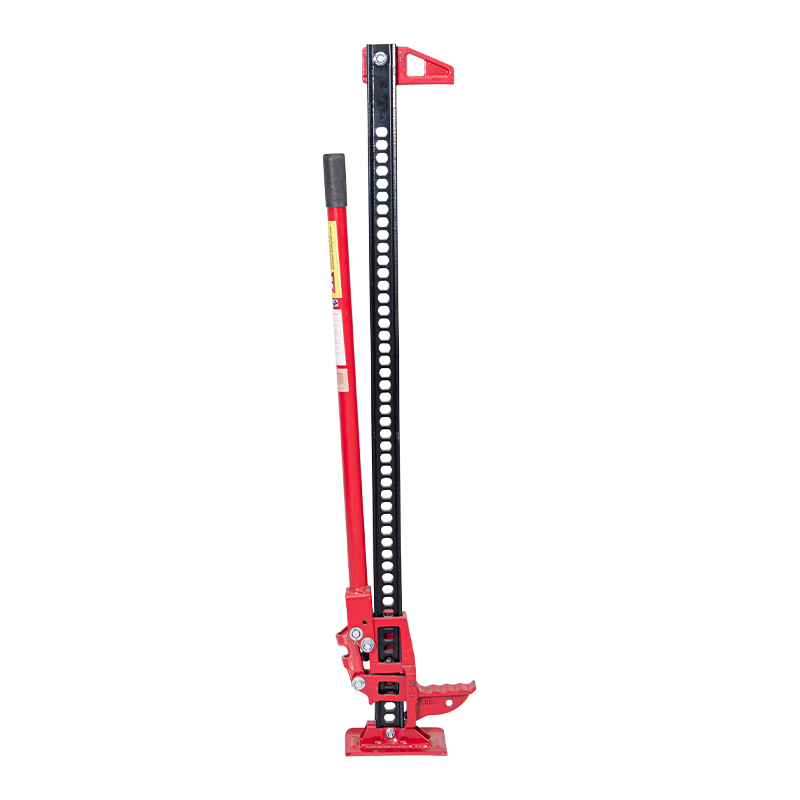

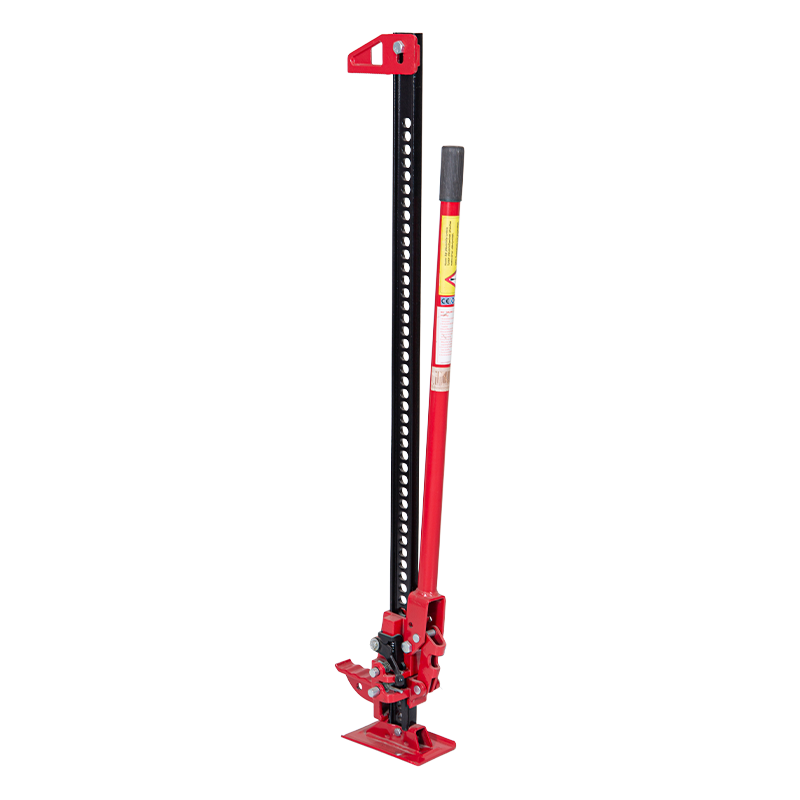

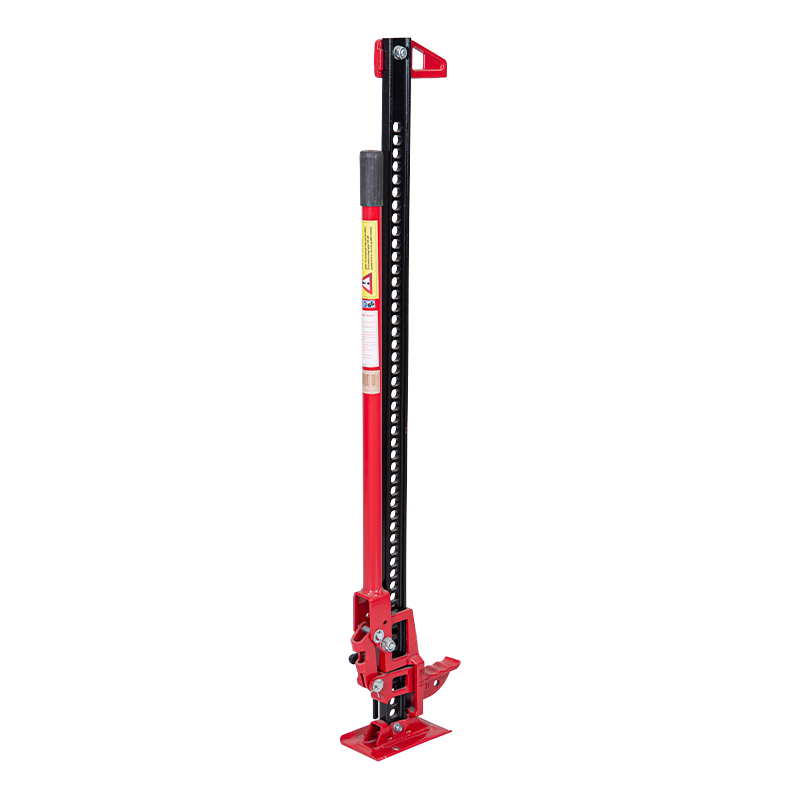

OY1248 Tall-Reach 48-Inch Farm Jack

The OY1248 Tall-Reach 48-Inch Farm Jack is a heavy-duty mechanical lifting tool engineered for agricultural, off-road recovery, construction, and rural maintenance applications requiring exceptional vertical lift height. With a full 48-inch usable stroke, this jack provides the extended reach necessary for tasks such as lifting high-clearance farm equipment, extracting stuck vehicles from deep ruts, raising building beams, or stabilizing livestock trailers on uneven terrain. Constructed from heavy-gauge steel with a hardened rack bar and high-strength pawl system, the OY1248 combines rugged simplicity with exceptional versatility—functioning not only as a vertical lift jack but also as a manual winch, spreader, or clamp when rigged horizontally with chains or straps.

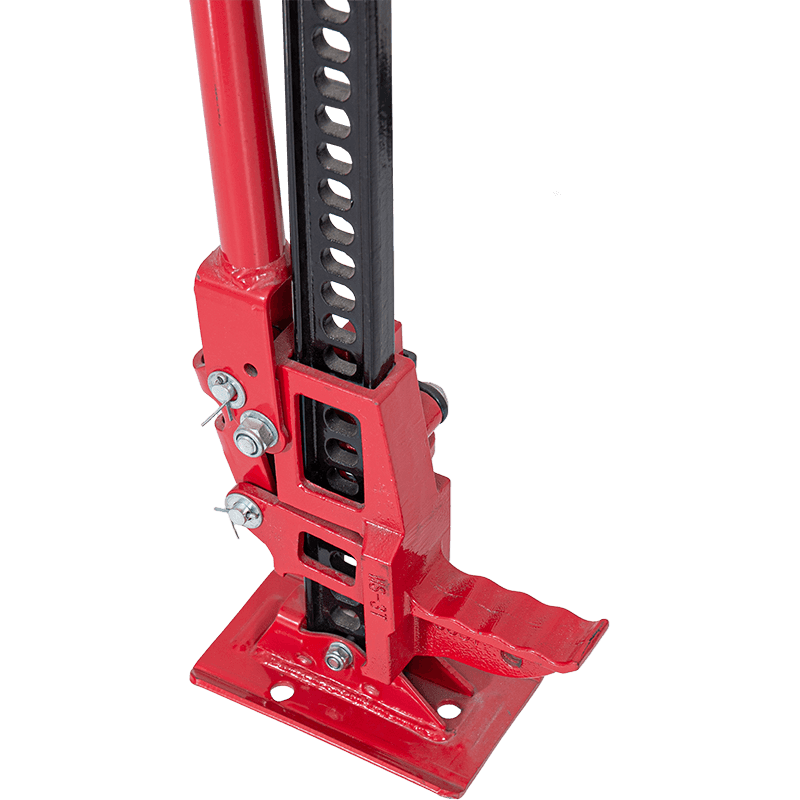

The mechanical lifting mechanism centers on a precision-cut, hardened steel rack bar with full-length teeth that engage a heavy-duty ratcheting pawl system. A removable steel handle provides excellent mechanical leverage, allowing a single operator to lift several tons in controlled increments. A spring-loaded selector switch enables quick change between lift, lower, and neutral modes. The 48-inch usable stroke covers a typical operating range from a collapsed minimum height of approximately 155 mm (when the claw is at its lowest) to a maximum lift height of over 1070 mm, providing ample clearance for large tractor tires, high-ground-clearance off-road vehicles, or raising heavy wooden beams. The generously sized base plate features serrated edges to bite into dirt, gravel, mud, or grass, preventing sinking or slipping under load.
