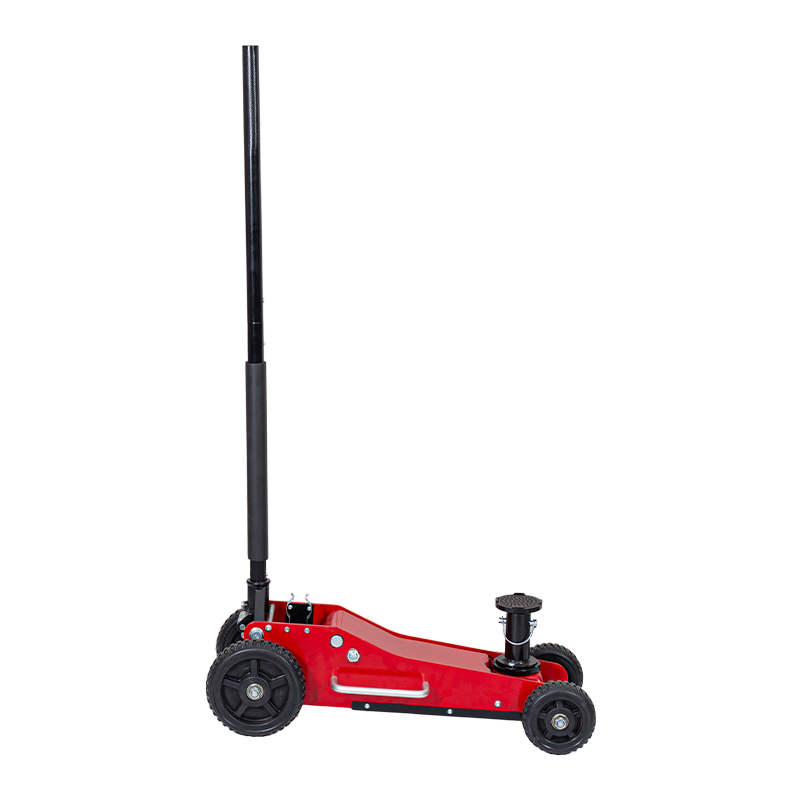

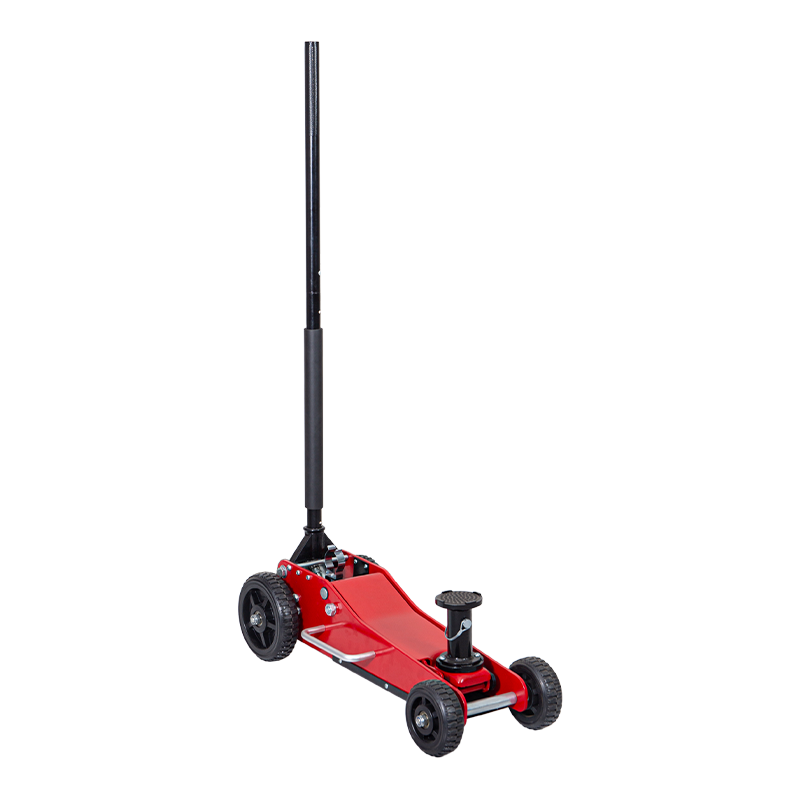

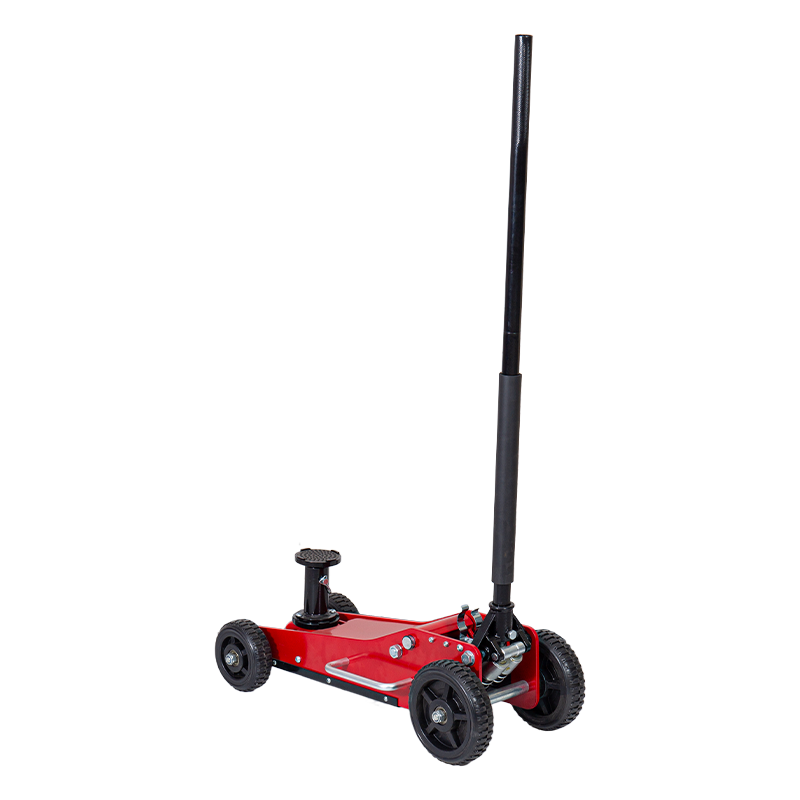

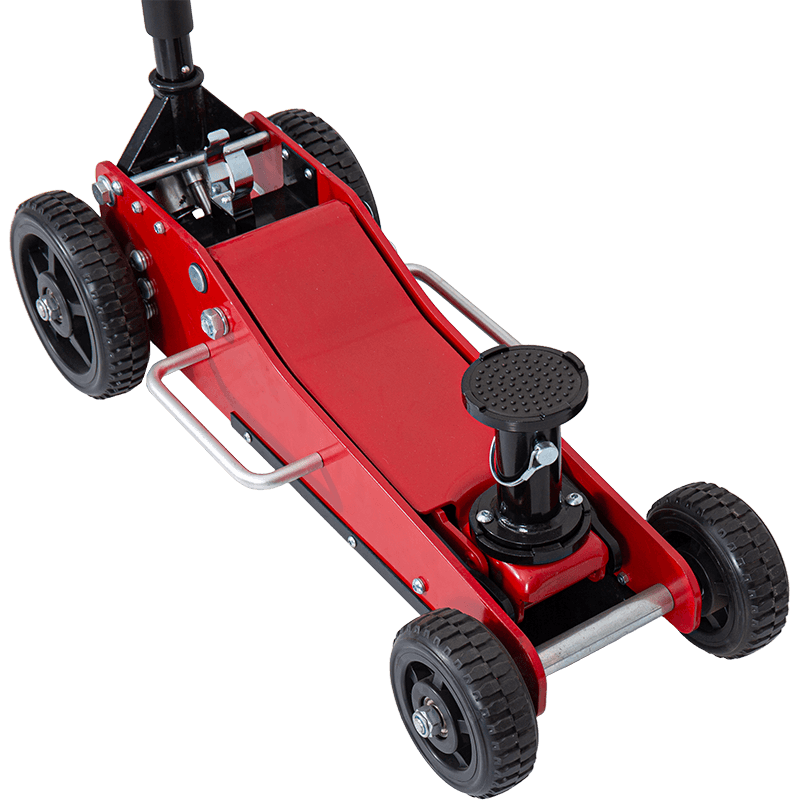

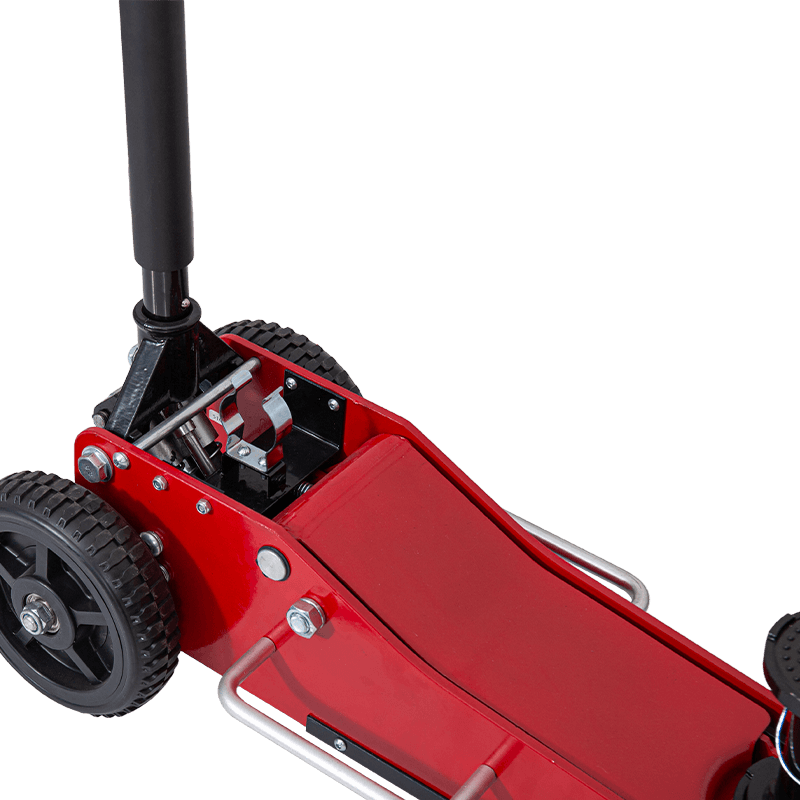

OY STD-2.5 2.5Ton reinforced chassis Off-Road Floor Jack

OY STD-2.5 2.5Ton reinforced chassis Off-Road Floor Jack

OY STD-2.5 Extended-Reach Off-Road Floor Jack combines a 2.5-ton rated capacity with the largest maximum tray height dimension in the standard off-road series at 675mm, providing greater vertical reach for vehicles with significantly lifted suspensions or those resting on high-sided terrain obstacles.
The 290mm tray width at the 2.5-ton level accommodates wider underframe contact points common on vehicles with aftermarket suspension lifts, skid plates, or reinforced underbody protection. At 38.85kg net, it is heavier than the lower-capacity models, reflecting the reinforced structural requirements of the extended reach geometry.
The all-terrain wheels maintain ground mobility across uneven outdoor surfaces, and the wider base footprint at this capacity level adds lateral stability when lifting vehicles at the extended maximum height.
A safety overload valve and controlled descent mechanism are standard, with the descent system calibrated to handle the higher potential energy stored at maximum height with a heavier vehicle load.
The best-fit choice for lifted truck owners, overlanding expedition teams, and off-road recovery operators working with heavily built-up 4WD vehicles.

MODEL CAPACITY  (TON) A (MIN.H)/MM B (WITH HIGH TRAY) /MM C (WITHOUT HIGH TRAY) /MM D (MAX.H)/MM N.W. (KG)  (IRON) G.W. (KG)  (IRON) QTY/CTN  (PCS) PACKAGE SIZE (CM) QTY/20'CY  (PCS)
OY STD-2.5 2.5 160 290 542 675 38.85 41.55 1 85×41×32 254
