| MODEL | CAPACITY (TON) | MIN.HT. (MM) | PRODUCT DIMENSIONS (MM) | MAX.HT. (MM) | G.W. (KG) | N.W. (KG) | WAY OF PACKING | PACKAGE SIZE (CM) | QTY/20'CY (PCS) |
| OYJ0600Y | 2 | 80 | 530 x 214x135 | 360 | 11.5 | 10.5 | 1 | 560 X 230 X 155 | 1500 |

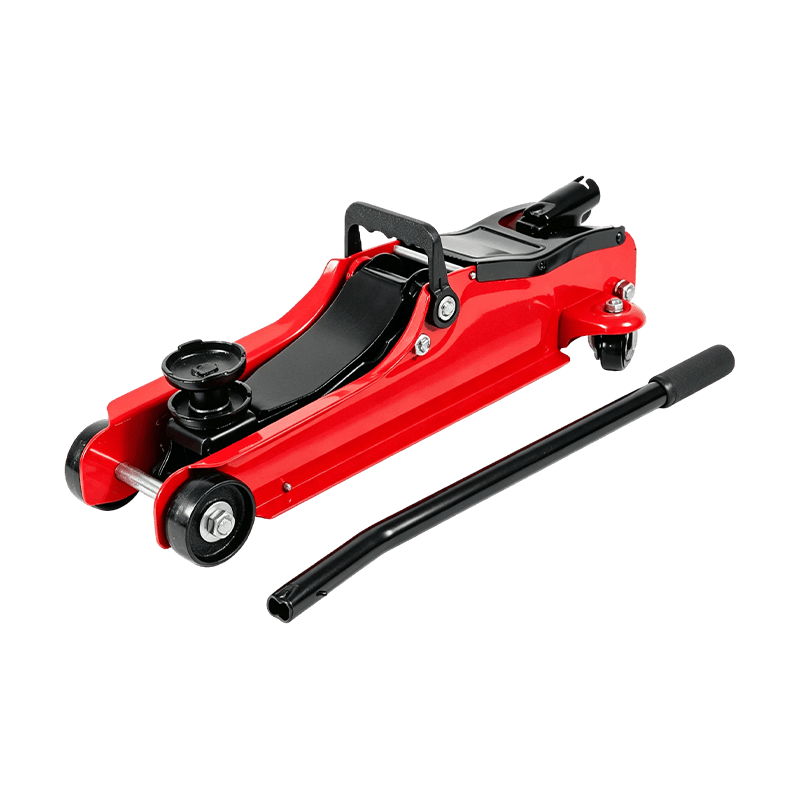

Home · Products · Jack · Floor Jack · OYJ0600Y 2Ton safety-tested Floor Jack
The OYJ0600Y is a 2‑ton capacity floor jack that places safety testing at the forefront of its design and manufacturing process. The OYJ0600Y features a saddle insert that contacts the vehicle lift point in pattern.
Key specifications include a rated capacity of 2 tons, a minimum saddle height of 80 mm, and a maximum lift height of 380 mm – ideally suited for compact cars, sedans, light SUVs, and small vans. The hydraulic system features a dual‑piston rapid lift design that brings the saddle to the vehicle chassis in three to four pumps, after which the main piston delivers smooth, controlled lifting.
The pump is protected by a steel shroud, and the lifting arm uses a forged steel lifting yoke rather than a welded assembly, eliminating a common failure point in economy jacks.Body: 530 × 214 × 150 mm, 80 mm minimum, 360 mm maximum lift, 2-ton capacity, 11.5 kg gross weight, packed at 560 × 230 × 155 cm.
