| MODEL | CAPACITY (TON) | MIN.HT. (MM) | PRODUCT DIMENSIONS (MM) | MAX.HT. (MM) | G.W. (KG) | N.W. (KG) | WAY OF PACKING | PACKAGE SIZE (CM) | QTY/20'CY (PCS) |
| OYJ0620B | 2.5 | 140 | 520×188×148 | 380 | 13 | 12.5 | 1 | 555×200×165 | 1600 |

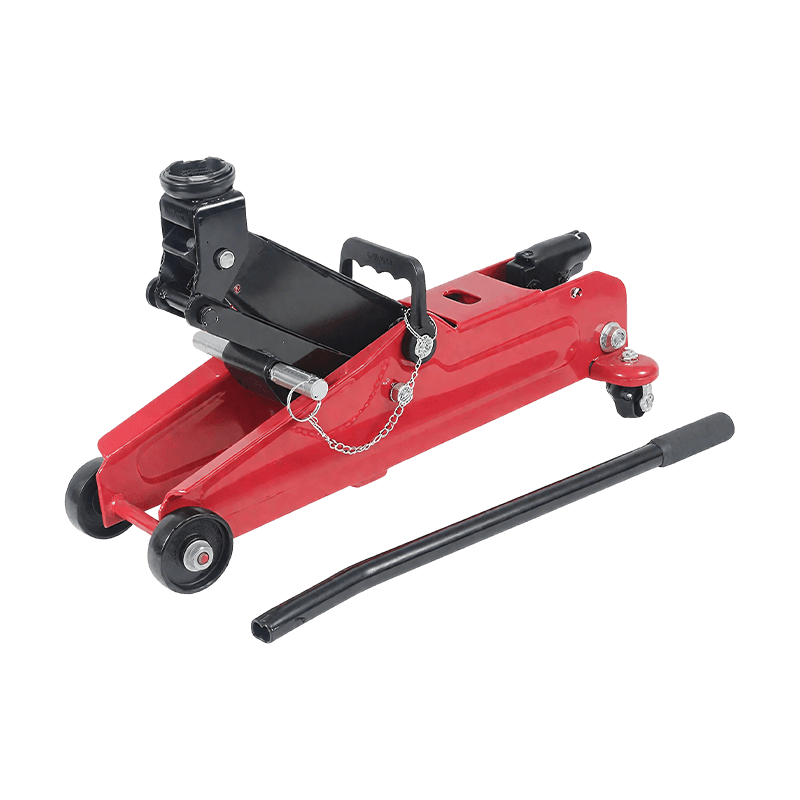

Home · Products · Jack · Floor Jack · OYJ0620B 2.5Ton anti-slip saddle Floor Jack
The OYJ0620B 2.5-Ton Floor Jack with anti-slip saddle is a purpose-built lifting tool for automotive workshops and home garages where load stability during lifting is a critical concern. Rated at 2.5 tons, it safely handles sedans, SUVs, and light trucks. The defining feature is the integrally molded anti-slip saddle surface, which uses a patterned rubber or textured composite pad to significantly reduce the risk of the vehicle shifting or slipping on the saddle when lifting from soft or uneven jack points.
The jack retains the robust construction of the standard OYJ0620 series, including a heavy-duty welded steel frame and reinforced side plates for structural rigidity under full load. The low-profile design offers a minimum saddle height of approximately 140 mm for low-clearance vehicles and a maximum lift height of 380 mm for ample workspace. A double-sealed hydraulic cylinder ensures leak-free performance, while an overload safety valve automatically stops lifting beyond the 2.5-ton limit. The ergonomic handle with non-slip grip allows smooth pumping, and a responsive bypass valve provides controlled, jerk-free lowering. These core features work together with the anti-slip saddle to enhance both safety and usability in daily operations.
