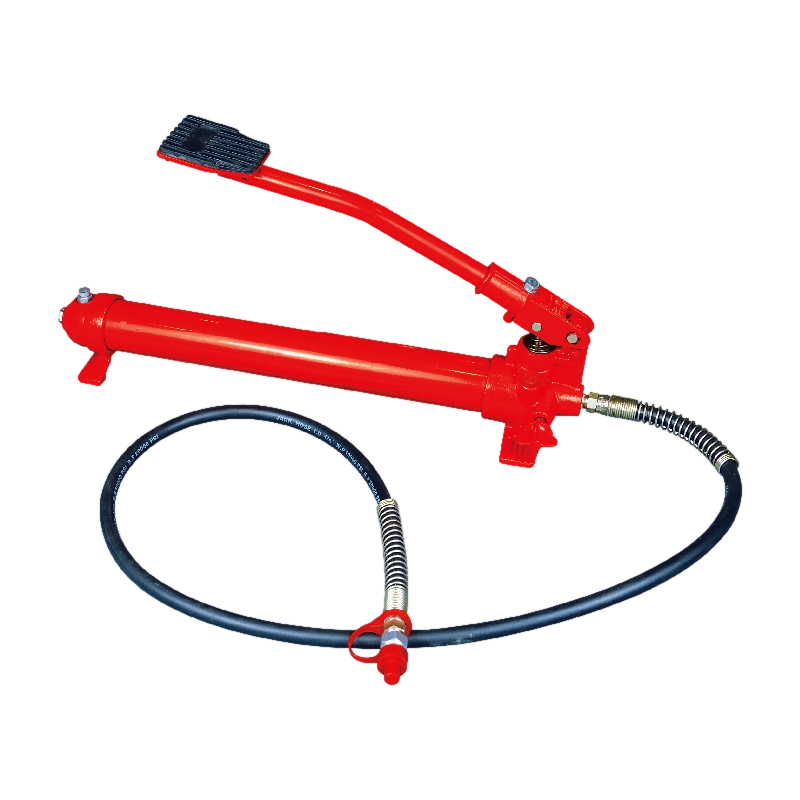

OY1001 Manual-Foot 790mL Hydraulic Pump

The OY1001 Manual-Foot 790mL Hydraulic Pump is a foot-operated hydraulic power unit delivering up to 9,000 PSI of output pressure from its 790 mL usable oil reservoir. As a fully manual, non-air-dependent pump, it provides maximum portability and can be used in any location regardless of compressed air availability, making it a versatile choice for both workshop and field hydraulic applications.

The foot-pedal actuation design allows the operator to apply pumping force with their foot while keeping both hands free to guide or monitor the connected tool or actuator. This hands-free pumping approach is particularly beneficial during pressing, lifting, or forming operations where manual dexterity is needed at the tool head. The 9,000 PSI rated pressure output is compatible with many professional hydraulic cylinder and press applications. The output port is threaded to 1/4"-18NPT, a standard fitting used widely in hydraulic tooling systems.

With a gross weight of 17 kg and compact package dimensions, the OY1001 is practical to store and position in confined workshop spaces. It is well suited to automotive service, industrial maintenance, construction site applications, and any environment where a reliable, electricity-free and air-free hydraulic power source is required for low-to-medium force hydraulic tool operation.
