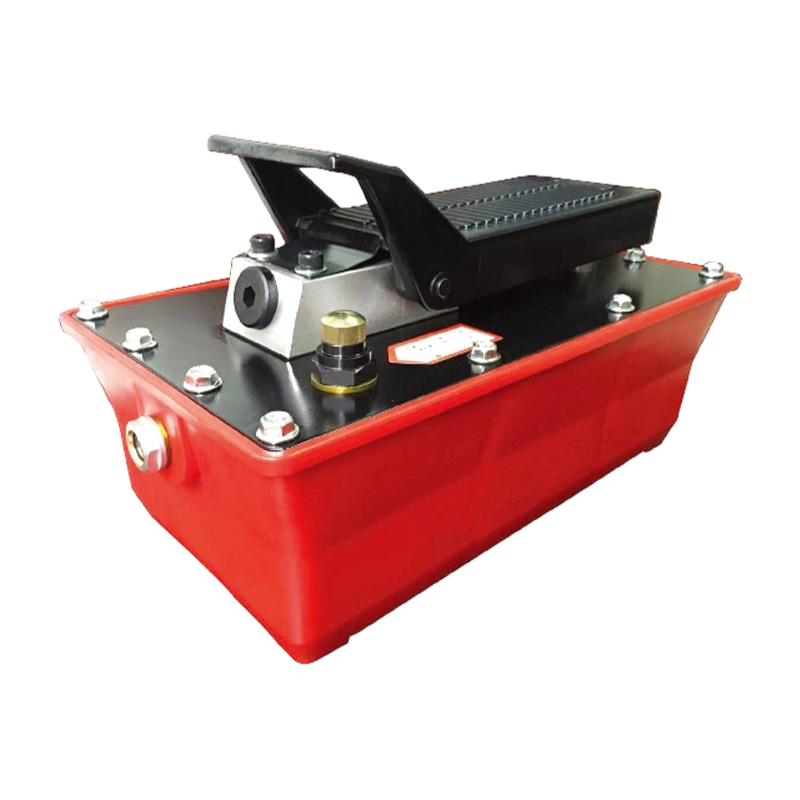

OY1006 PE-Reservoir 2.3L Air Hydraulic Pump

The OY1006 professional-grade 2.3L Air Hydraulic Pump is a medium-capacity, high-pressure pneumatic hydraulic unit distinguished, which provides corrosion resistance for easy oil-level monitoring without the need to remove or unscrew a filler cap. With a 2.3 L oil capacity and a 10,000 PSI rated output pressure, it offers a step up in reservoir volume compared to the 1.6 L OY1005.
Requiring an air source of 0.4 to 1.0 MPa, the pump outputs through a 3/8"-18NPT port, compatible with a broad range of high-pressure hydraulic tooling. The PE reservoir body provides good chemical resistance and keeps weight moderate at approximately 9 kg gross. Package dimensions of 36 × 21 × 21.5 cm support practical workshop storage. The larger oil volume allows for longer operating cycles between refills compared to smaller-reservoir alternatives.
The OY1006 is appropriate for workshop and field applications requiring sustained high-pressure hydraulic output over extended cycles, including cylinder actuation, structural bolting, high-force clamping, and rescue tool operation. The transparent PE reservoir is a practical convenience feature for operators who need to monitor oil level at a glance during busy service operations, reducing the risk of running the pump dry and causing air entrainment or seal damage.
