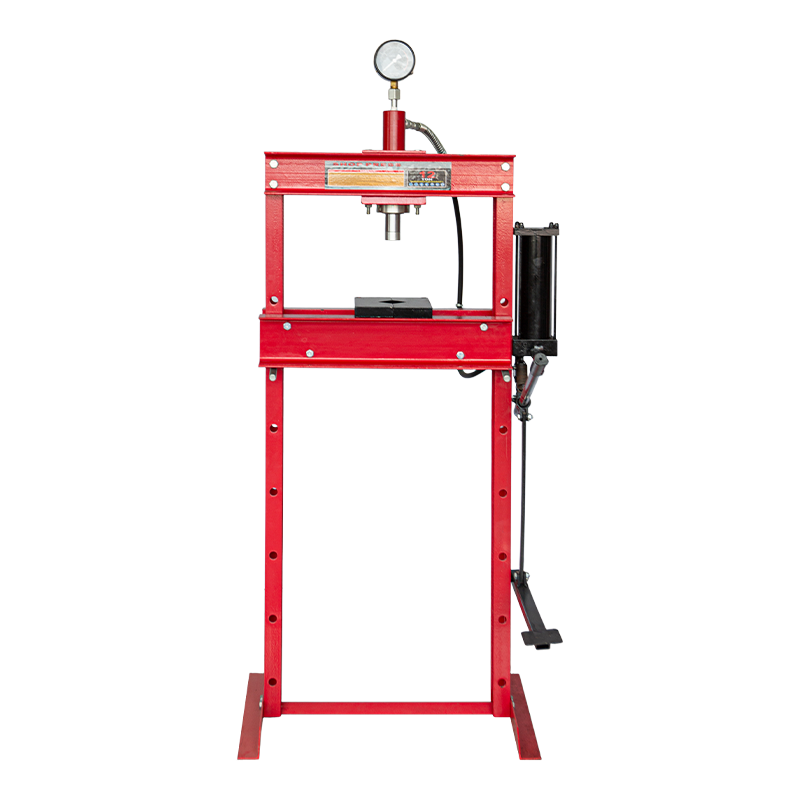

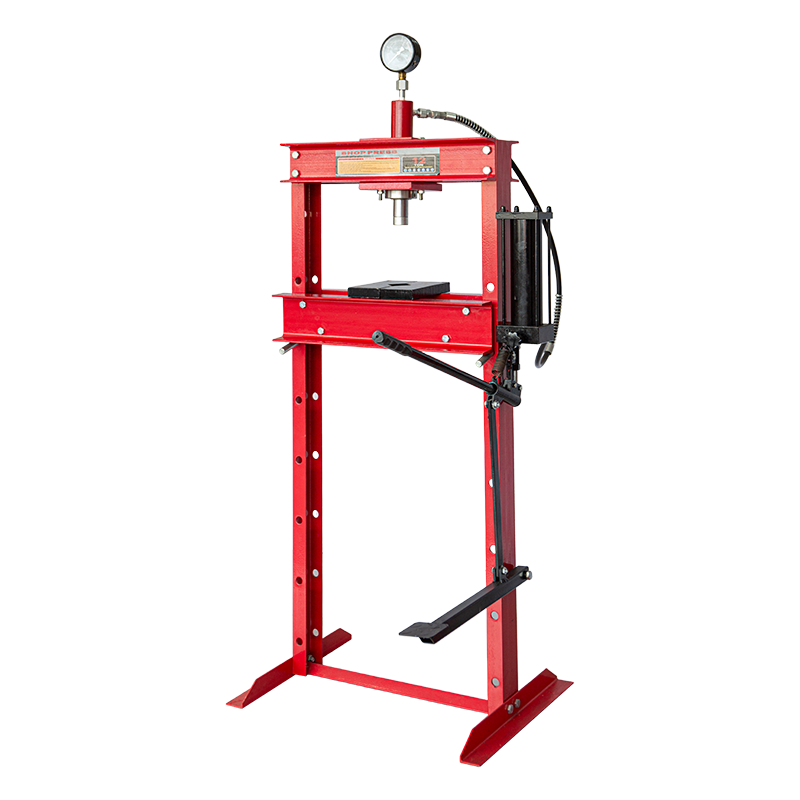

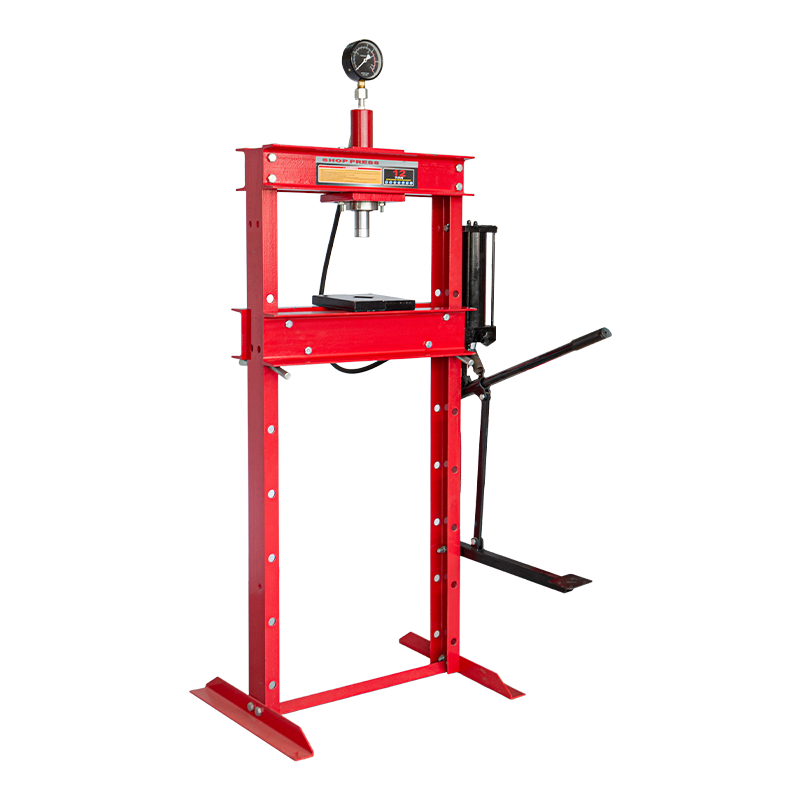

OY2012-P 12Ton H-Frame Hydraulic Shop Press

The OY2012‑P is a 12‑ton capacity manual hydraulic shop press built on a classic H‑frame architecture. This design, characterized by two vertical columns and a rigid crossbeam, provides exceptional torsional rigidity and load distribution across the entire structure.
Key specifications include a rated capacity of 12 tons, working range of 0–990mm, and a clear bed width of 380mm between the columns. The press is equipped with a hand‑operated hydraulic pump featuring an overload relief valve preset to 12 tons, preventing unintended over‑pressurization. A removable work table with multiple height positions (adjustable via steel pins) accommodates workpieces of varying thicknesses.
Typical applications of the OY2012‑P include automotive component pressing (bearings, universal joints, bushings, ball joints), metal straightening (bent structural sections, light truck axles), and general shop maintenance (gear removal, pulley press‑fit). The H‑frame’s inherent stability ensures that the ram maintains perpendicularity to the work table even under eccentric loads – a common scenario when pressing off‑center components. This perpendicularity directly affects the quality of interference fits and prevents damage to bores or shafts. The press holds ISO9001 and CE certifications, and is backed by a 12‑month warranty.
For professional users, the OY2012‑P represents a balance between capacity and footprint. Its H‑frame design requires no floor anchors or permanent installation; it stands stably on four rubber foot pads that also dampen vibration.
