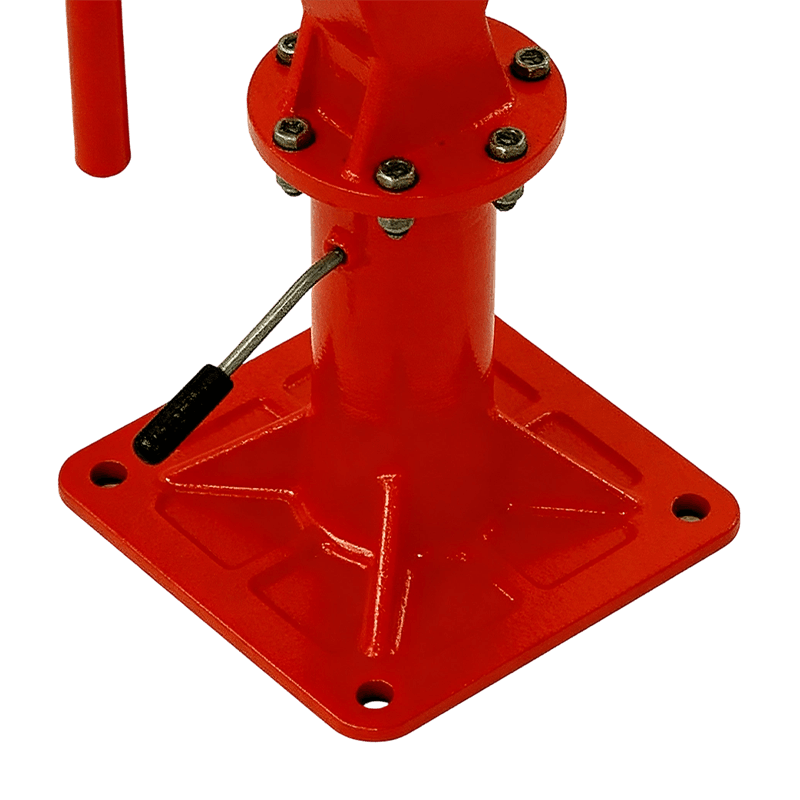

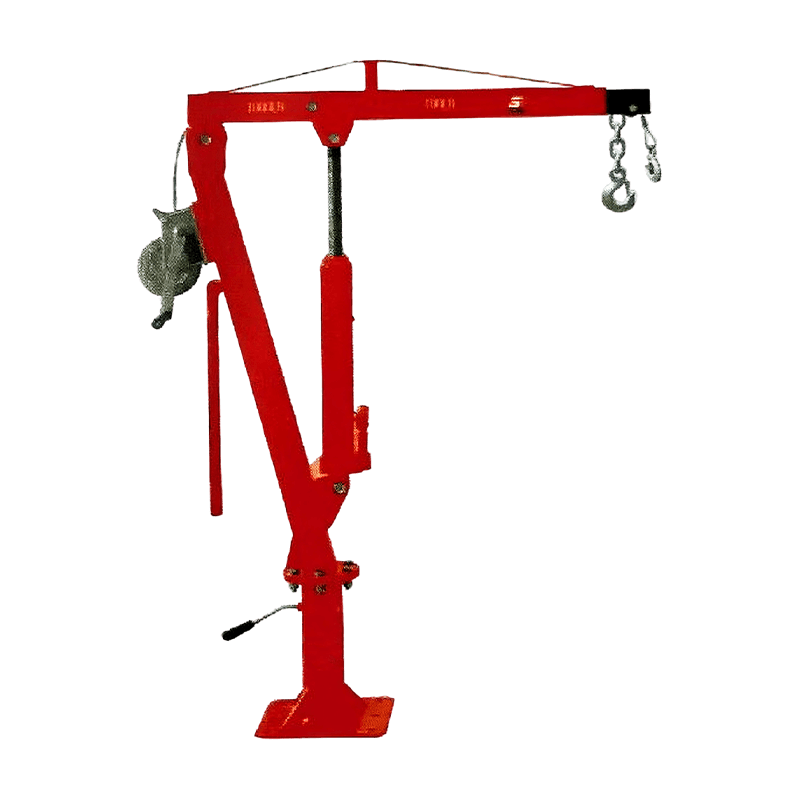

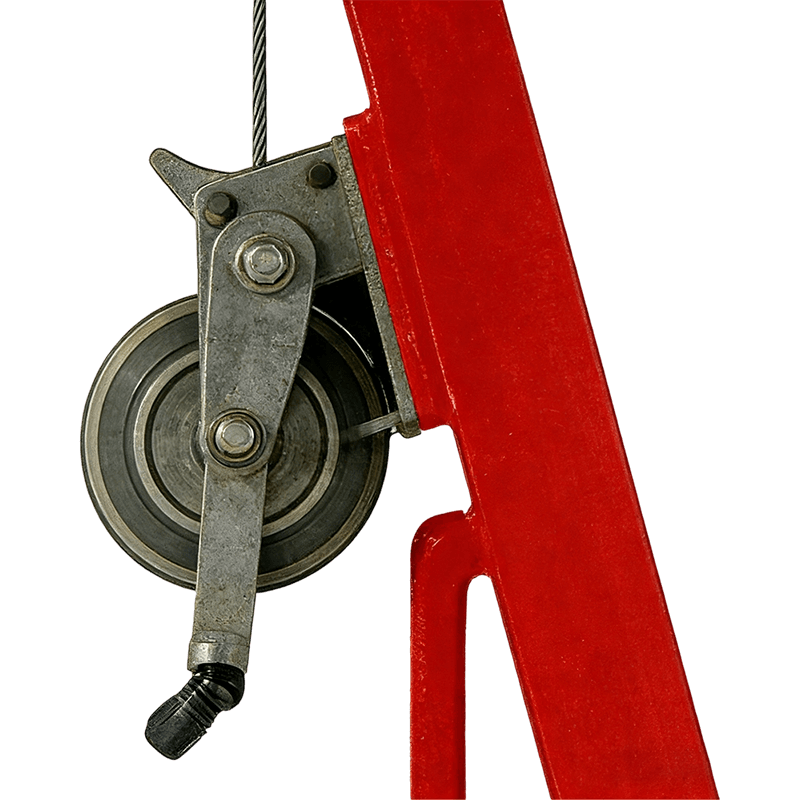

OY5105D 2000LBS hand-operated hydraulic Pick Up Crane

The OY5105D is the extended-capacity pick-up crane at the 2000LBS rating, doubling the load handling of the 1000 LBS standard model to cover the heavier engine and drivetrain assemblies found in trucks, diesel-engined commercial vehicles, and performance cars where engine weight exceeds 500 kg fully dressed. Operating a 1000 LBS crane near its limit on these heavier assemblies reduces safety margin and accelerates wear on all structural and mechanical components; the OY5105D's 2000LBS rating keeps these loads comfortably within the safe working zone.
The extended-capacity specification requires a heavier-gauge boom and a larger-bore hydraulic cylinder relative to the 1000 LBS model, reflecting the genuine engineering difference between the two capacity classes rather than simply relabeling the same structure. The additional mass of the 2000 LBS frame is the direct consequence of the structural scaling required to carry double the load safely.
Boom working range of 930–1300 mm across available positions covers the standard passenger vehicle and light commercial engine bay dimensions. Package at 109 × 32 × 18 cm and 33 × 32 × 31 cm. The locking and braking system prevents load drift during positioning, and the compact stored footprint is consistent with the 1000 LBS OY5105A for shops standardizing on one storage solution for both variants.
