OY2010 10Ton Standard-Manual Hydraulic Shop Press

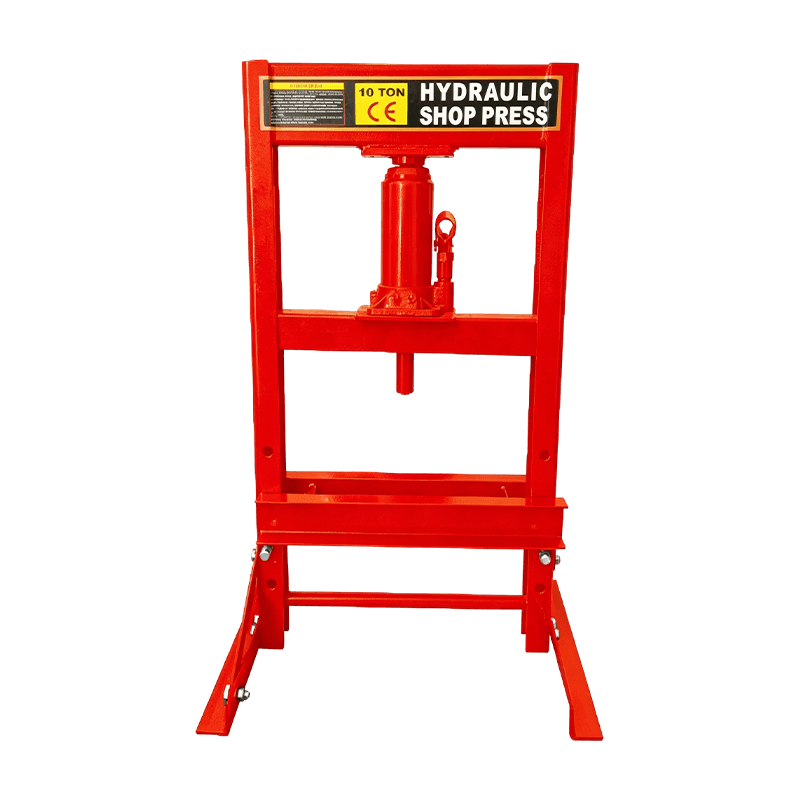

The OY2010 is the standard-manual 10-ton hydraulic shop press; its straightforward front-pump, upright H-frame design delivers 10 tons of pressing force across a 260 mm working stroke and a 420 mm bed width, covering the full range of common automotive and industrial pressing operations: bearing press-fit and removal, shaft straightening, sleeve and bushing installation, light stamping, and small-batch forming work.

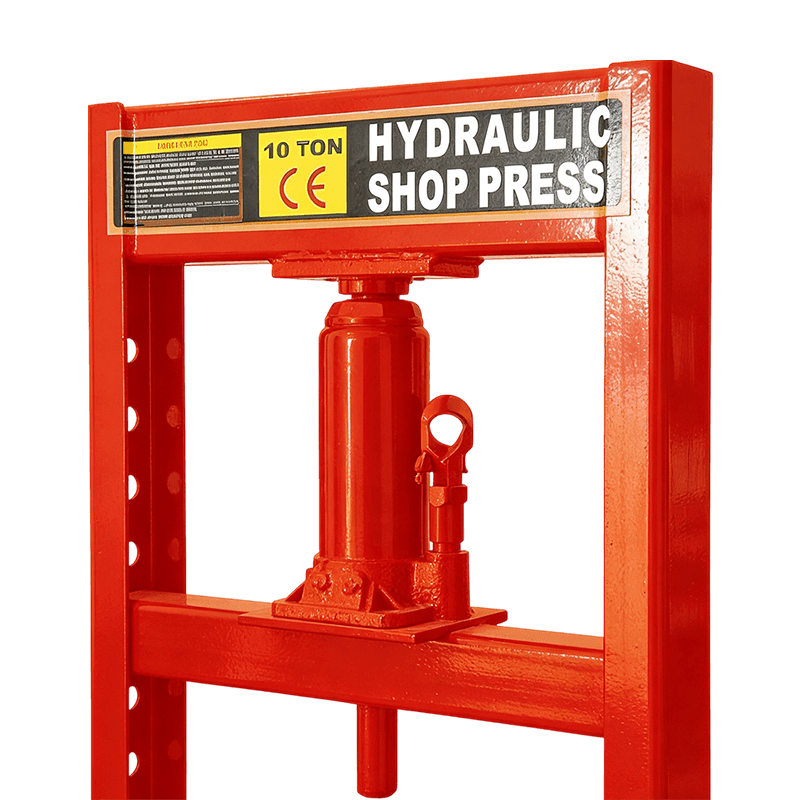

The front-mounted pump lever provides intuitive, one-hand operation with the operator standing directly in front of the press—the most natural working position for precision guidance of the ram onto small or irregularly shaped components. The hydraulic circuit uses a direct-acting cylinder without multi-speed complexity, which means consistent force delivery and a simple maintenance profile with fewer components that require servicing.

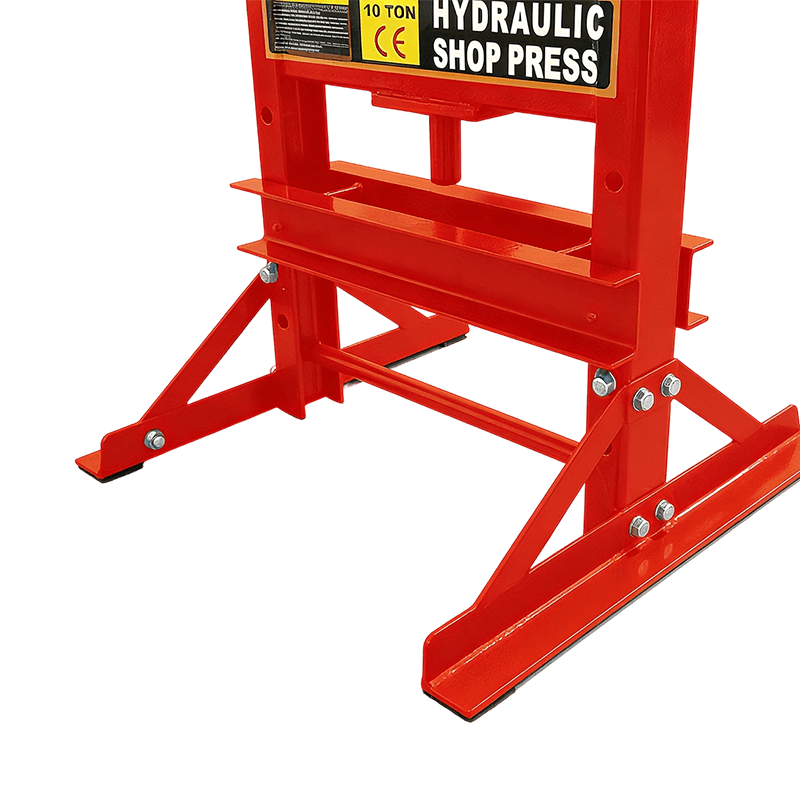

A precision pressure gauge monitors the applied force in real time, enabling the operator to set a target pressure for repeatable batch operations. The H-frame is precision-welded from structural-grade steel with a powder coat finish for shop-environment durability. At 30 kg and packaged at 85 × 50 × 15 cm, the OY2010 is an accessible, efficient tool for any professional workshop requiring a reliable 10-ton press.
