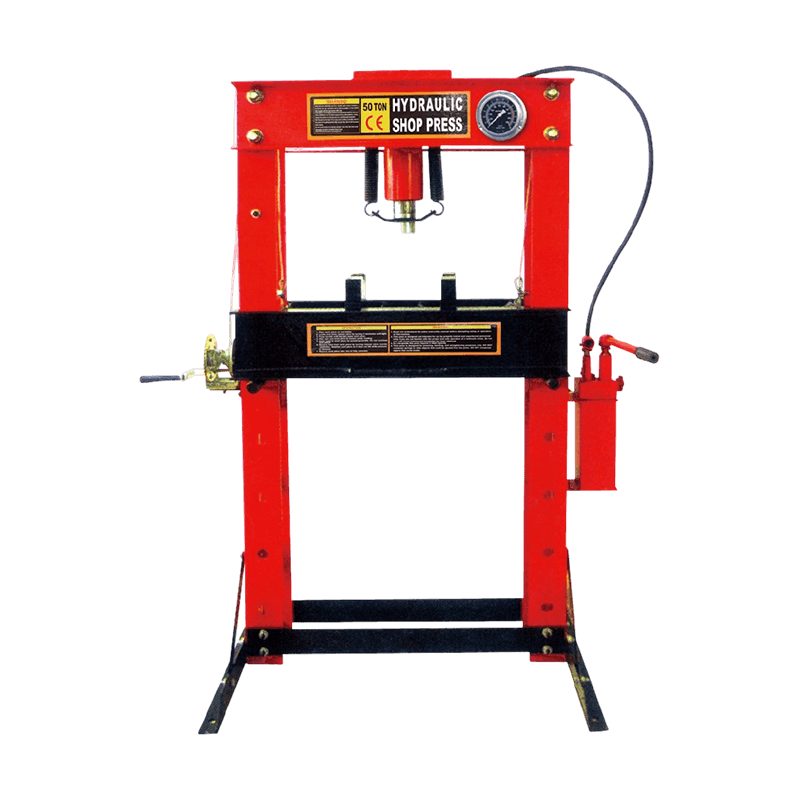

OY2050S-2 50Ton pressure-controlled Shop Press

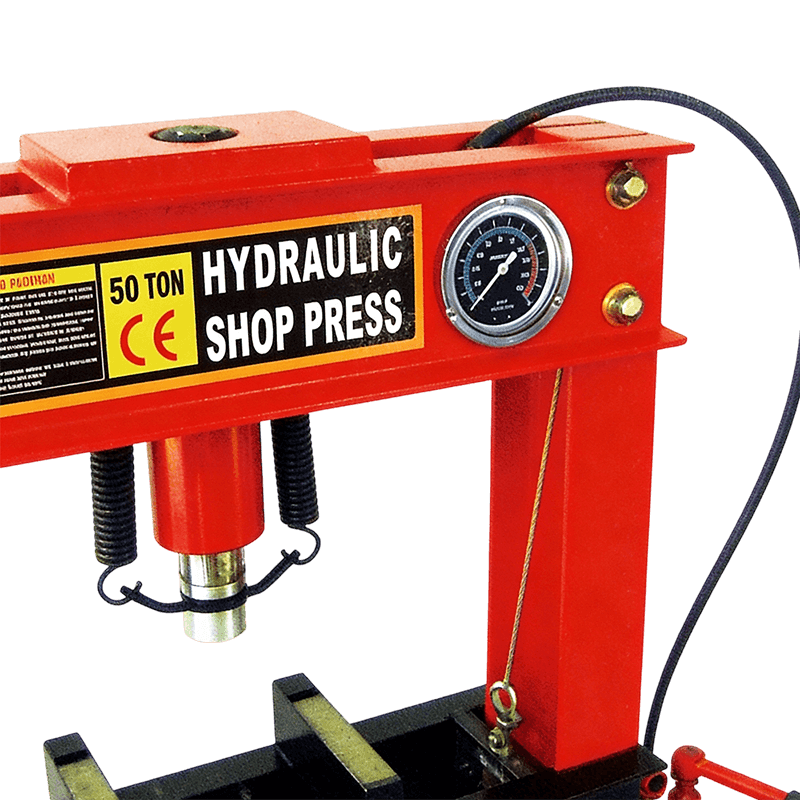

The OY2050S-2 is a 50‑ton pressure‑controlled shop press designed for professional workshops and industrial maintenance environments. This heavy‑duty press combines a rigid welded steel frame with a precision hydraulic system, offering both high force capability and accurate pressure regulation. The OY2050S‑2 features a pressure gauge. Operators can set a specific force level and maintain it consistently, which is essential for delicate assembly tasks, batch production, or quality‑sensitive applications such as bearing installation, gear fitting, and shaft straightening.

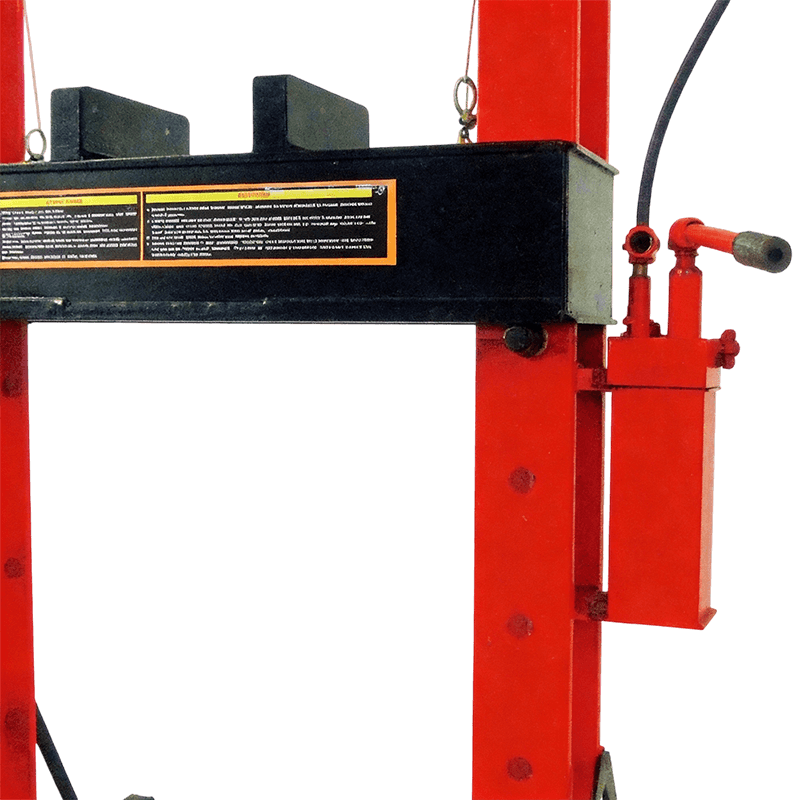

The press uses a two‑speed hydraulic pump system. The low‑pressure, high‑flow stage quickly advances the ram to the workpiece, while the high‑pressure stage provides smooth, creep‑free pressing up to the full 50‑ton capacity. The ram stroke is 1080 mm, and the adjustable work table can be repositioned at different heights via a simple pin system.
Safety and durability are central to the OY2050S‑2’s design. An integrated overload protection valve prevents exceeding the 50‑ton limit, and a ram return spring ensures rapid, positive retraction after pressure is released. The frame is stress‑relieved after welding to prevent distortion under heavy use, and the entire unit is finished with a durable powder coating for corrosion resistance.  With a net weight of 230 kg, the OY2050S‑2 delivers reliable, repeatable pressing performance for applications ranging from bearing work and metal forming to repair tasks and in‑house quality control. A 12‑month warranty are provided.
