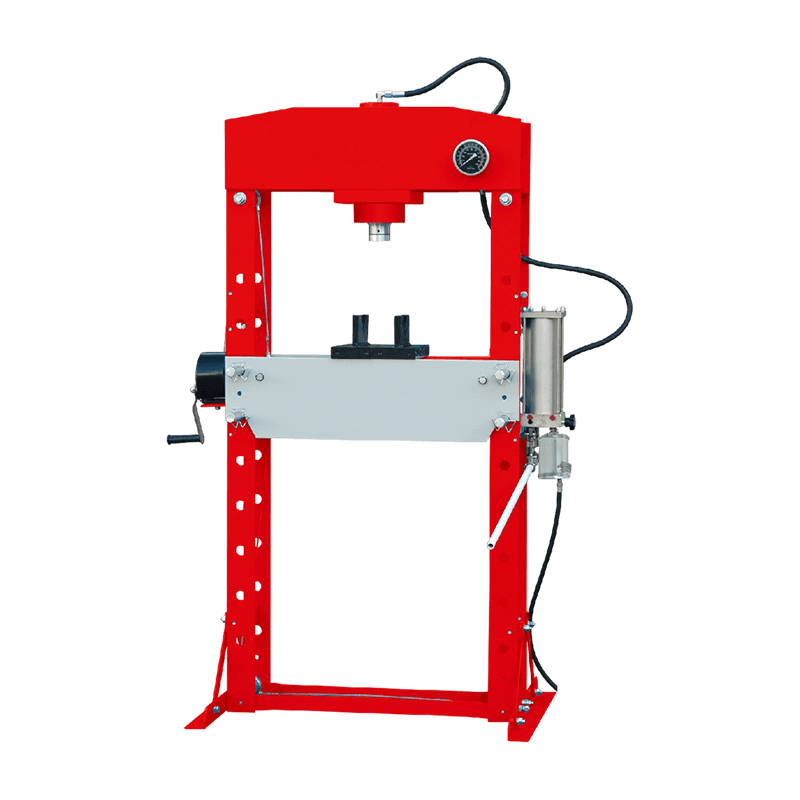

OY2050Q 50Ton table-adjustable Pneumatic Shop Press

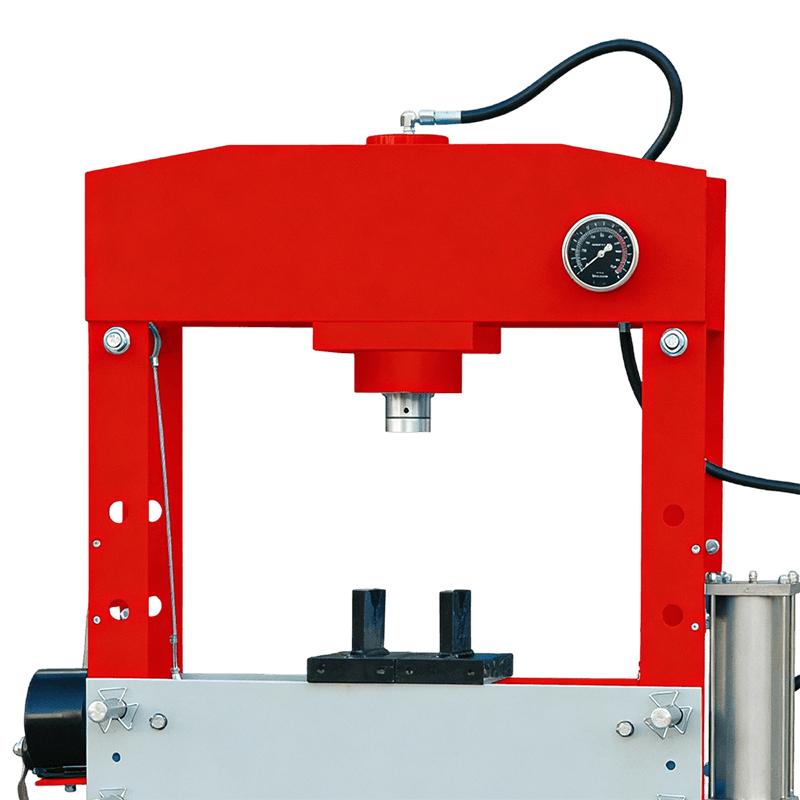

The press is built around a heavy‑duty welded steel H‑frame, stress‑relieved after fabrication to eliminate internal stresses and prevent distortion under full 50‑ton loads. The pneumatic‑hydraulic system delivers creep‑free pressing with automatic pressure compensation, maintaining consistent force even when air supply pressure varies. A precision pressure regulator and a large, glycerin‑filled pressure gauge are standard, allowing operators to set and monitor the exact pressing force.

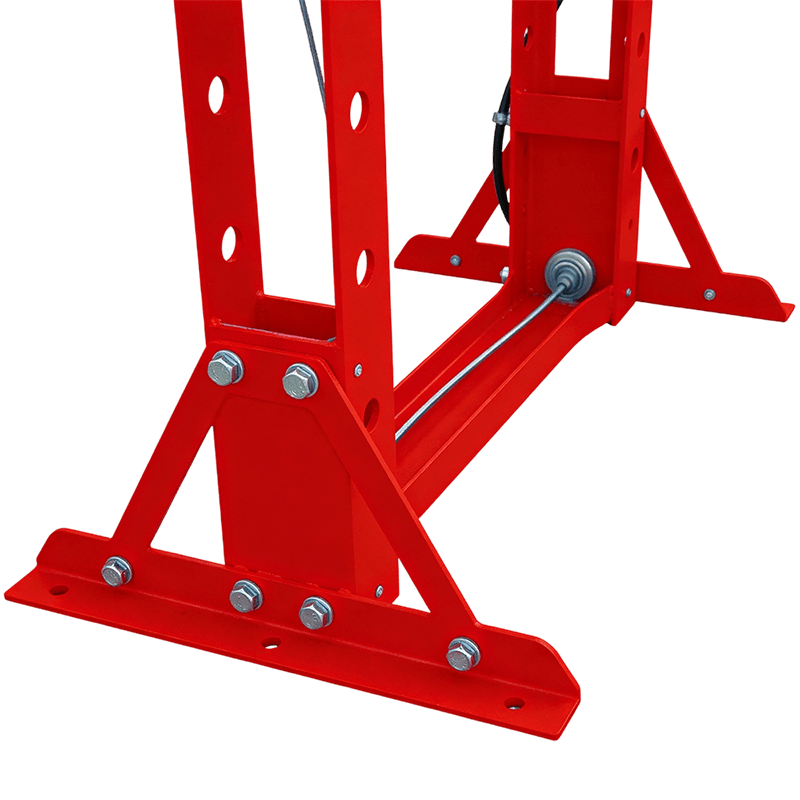

Using a simple pin system and winch, the table can be repositioned at multiple heights. The pneumatic circuit includes a dump valve that instantly releases pressure if the emergency stop is activated. The entire press is finished with industrial‑grade powder coating for resistance to oil, grease, rust, and workshop abrasion. The OY2050Q dramatically increases productivity while reducing operator fatigue, making it the ideal choice for any industrial shop needing high‑force pressing with flexible workpiece handling.
The 700 mm bed width and the 1040 mm working range ,at 265 kg and packaged at 211 × 97.5 × 31.5 cm, the OY2050Q is a major production-floor installation. Air pressure requirement: 0.75–0.85 MPa. Compatible with all standard industrial compressed air supply systems.
